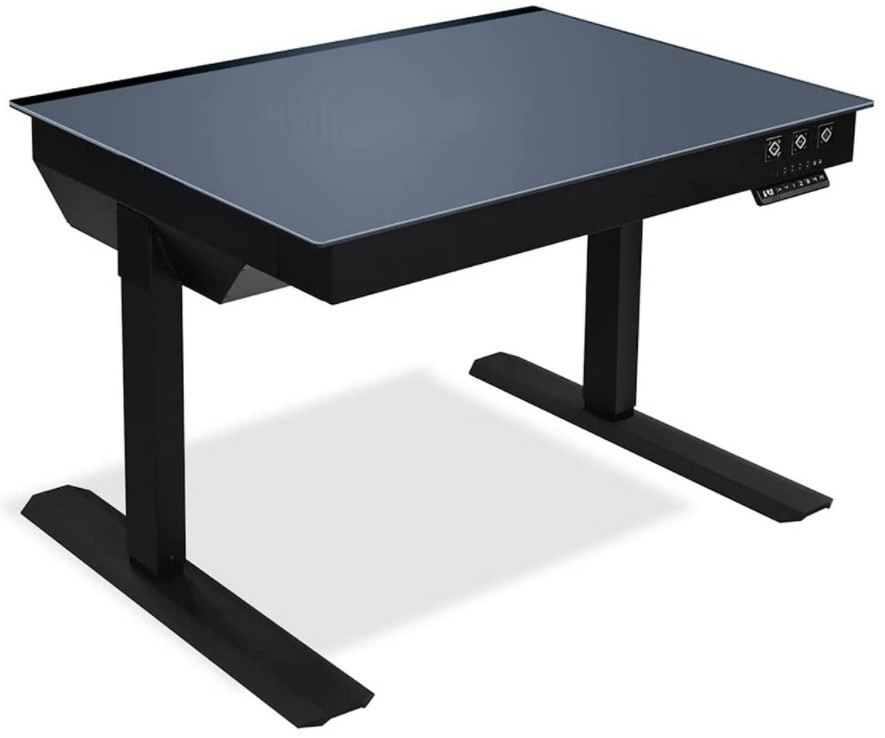

DK-04GX desktop case (height adjustable) - black
With the DK-04GX , Lian Li offers a classy desktop case for enthusiasts. The housing is made of aluminum and steel. In addition to an elegant look and great hardware compatibility, it also offers plenty of space for powerful custom water cooling and many well thought-out functions.
The features of the Lian Li DK-04GX table case at a glance:
Noble and height-adjustable table housing made of steel and aluminum
For a mainboard up to E-ATX form factor
Noble table top made of tempered glass
Integrated RGB and fan controller
Three pre-installed RGB strips with 50 RGB LEDs
Control panel with RGB, fan and height control
Space for a 240/280 and a 480/420 mm radiator
Up to nine 2.5 and 3.5 inch disks
Front I / O with 1x USB 3.1 Type C and 4x USB 3.0 Type A
Noble desktop case with a unique look
The noble design made of aluminum and tempered glass is based on a robust and durable steel construction. Despite the sturdy construction, the DK-04GX retains an elegant look with a chic table top made of 8 mm thick tempered glass .
With the glass plate and the three already built-in RGB-LED strips with a total of 50 RGB-LEDs, the built-in system can be presented particularly well. The integrated RGB controller is controlled via an RGB button in the control panel of the housing and enables easy switching between seven lighting modes. At the push of a button, you can switch between colors, synchronize with the mainboard or switch off the lighting completely.
Enough space for high-end gaming hardware
The mainboard tray can be removed for easy installation of the hardware. There is space for mainboards in E-ATX, ATX, Micro-ATX or Mini-ITX form factors. The up to 240 mm long ATX power supply is placed next to the board. Graphics cards with a length of up to 390 mm can be installed in the eight PCI panels .
For large CPU coolers , up to 185 mm of space is available under the glass lid. A total of nine 2.5 and 3.5 inch data carriers can be installed in three HDD cages. The cages each offer space for up to three 3.5-inch or two 3.5-inch and one 2.5-inch data carriers.
Designed for custom water cooling
In total, the desktop case has space for seven 120 mm or six 140 mm fans . The DK-04GX is already equipped with seven 120 mm fans ex works - which can be operated in five different modes using the built-in fan controller and the buttons on the control panel . Four modes call up preset speed levels between 100 percent power and silent operation. The fifth mode allows the fans to be controlled via the PWM signal from the mainboard.
The housing has been specially designed for custom water cooling - and you can tell that too: In the front of the DK-04GX , a removable radiator bracket takes a 480 or 420 mm radiator. In the back wall canA 240 or 280 radiator can also be installed. A removable bracket with mounting holes for common pump models also simplifies the installation of the pump.
Well thought-out desktop case with many features
In addition to extensive hardware and water cooling compatibility , the Lian Li DK-04GX offers many other useful features. Thanks to the built-in electric motor , the height of the table housing can be easily adjusted. The table can be brought into any desired position between 689 mm and 1175 mm using the height control on the control panel . Up to four height positions can be saved and can be called up using dedicated buttons on the control panel.
The I / O panel in the front has one USB 3.1 Type C and four USB 3.0 Type A portsas well as two audio connections. For a clean cable management, the edges of the table top are provided with a privacy screen, under which cables can be hidden.
