Vamzdynų sistema Vilpe

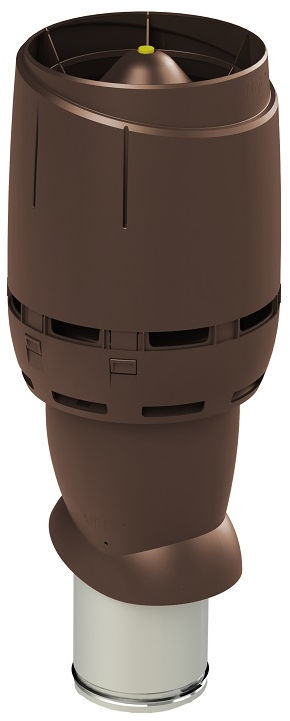

Description: Insulated exhaust ventilation pipe with the FLOW-cowl. Includes a galvanized steel inner pipe with a lip seal. A VILPE® pass-through chosen according to roof type and material sold separately.

The FLOW product line has up to 40% less pressure loss when compared to traditional VILPE® products. This reduces the amount of energy used in ventilation and allows for greater air volumes when needed. For example 160mm FLOW exhaust vent ( 360 m3/h, 30Pa vs. 20Pa): Exhaust vents with the new FLOW cowl have approximately 33% better pressure loss characteristics at 360 m3/h comparing to the traditional version. The payback period from energy savings for the new FLOW exhaust vents is approximately 3 years when compared to the traditional model.

The FLOW products combined with the VILPE® Intake vent reduce the energy consumed by ventilation systems by up to 12% when compared to existing products on the market. Lower energy consumption leads to direct savings in the electricity bill and also reduces the environmental impact each year. You can find more example calculation at vilpe.com/flow.

The intensive airflow testing and clever design of the FLOW product line results in unmatched water
separation and a perfect vertical airflow. This makes the products more effective at keeping rainwater and humidity out, while the vertical exhaust airflow pushes any impurities away from the roof and facade.

The modern design language of the VILPE® FLOW product range was created in collaboration with well-known industrial designers. All future VILPE® ventilation products will feature the new performance driven design.
