Name: Valdiklis Lamptron
Brand: Lamptron
Price: 80.05 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Valdikliai

Prekės ženklas
Lamptron
Papildoma informacija
Matmenys: 148 x 46.5 x 39 mm (P х A х G). Matmenys (LCD): 129 x 32.5 mm (P x A). Suderinamumas: 1x 5.25 colių lizdas. Spalva: juoda (korpusas), įvairiaspalvis (apšvietimas). Vėdinimo kanalai: 4 (maks. 20 W vienam kanalui). Įtampa: 0 - 12 V nuolatinės srovės. Jungtys: 1x 4-kontaktų Molex. 4x 3- kontaktų (ventiliatorius). 4х 3- kontaktų RGB. 4x 4- kontaktų RGB. 4x 2-kontaktų temperatūros jutiklis. Montavimas: 1x CM420 ventiliatoriaus kontrolierius. 4x 2-kontaktų temperatūros jutiklis. 1x nuotolinio valdymo pultelis. 4x varžtai

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Prekės aprašymas anglų kalba:

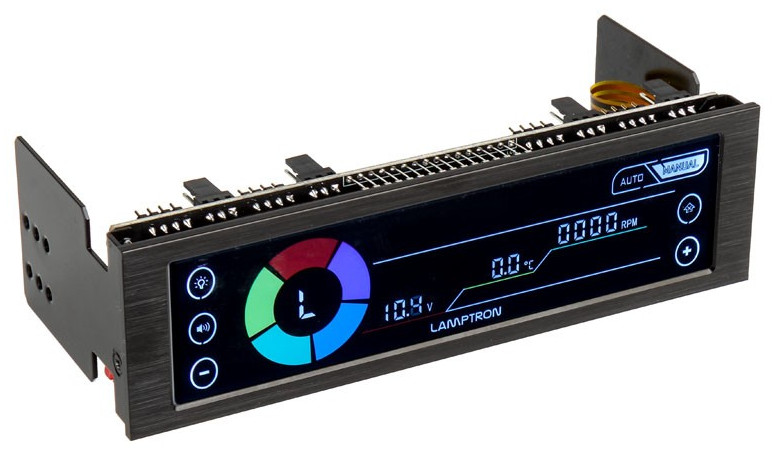

Lamptron fan controller for a 5.25-inch slot, with four channels (up to 20 watts per channel), multicolored LCD touch screen with remote control, 3x 3-pin PWM & 4x 3-pin addressable RGB LED & 4x4 Pin RGB-LED, 4x temperature sensors

The Lamptron CE420 lighting and fan control makes it easy to control and control fans installed in a computer, even those with RGB LED lighting. There are a total of four channels available, with four PWM fan (4-pin) ports and four 3-pin and 4-pin ports each for addressable and non-addressable RGB LEDs. The CE420 also has four convenient temperature sensors, as well as a backlit LCD touch screen , which in addition to extensive information also provides easy configuration of the connected fans.

The most important features of the CM420 fan controller at a glance:

High-quality housing made of aluminum
LCD touch screen with multicolor illumination
Four channels for PWM fans with a maximum of 20 watts per channel
Connections for 3-pin & 4-pin RGB LEDs
Four temperature sensors already included
Automatic or manual control, including remote control

Design & installation of the CE420 fan controller The CM420 fan control of Lamptron can quickly and easily into a 5.25-inch slot are screwed. The four included screws provide a secure hold and complement the computer with a practical solution for regulating built-in fans. The black frame captivates with its brushed aluminum look and perfectly surrounds the luminous LCD touch display. A total of four PWM fans (3-pin) can be connected. The scope of delivery also includes four temperature sensors . Power is supplied to the fan control via a 4-pin Molex connector , which in turn is not included.

The display of the fan control offers a variety of information and configuration options. In addition to a power-on / off switch, there is the possibility to switch between the four available channels on the right side. The selected channel will also be displayed large again. The center of the display shows the current speed of the fan in the form of a tachometer. To the left are the temperature and a changeable speed, volt or percent display.

The CM420 fan controlleralso offers the possibility to make all settings manually or to select automatic operation. In addition, the brightness of the lighting can be adjusted in three stages (100%, 50% or 0%). After switching on the fan control, the lighting is set to 100% by default. In automatic mode, it turns off after three minutes. The CM420 is also equipped with an alarm function that can warn the user if the temperature is too low or too high. This feature is quick and easy to configure and also easy to disable or enable. Likewise, you can switch between "Quiet" and "Fullpower" modes, depending on the cooling requirements.

Note:You can connect to the 3-pin connectors. However, these can only be regulated by the voltage.
