Prekės informacija

Bendrosios charakteristikos

Prekės ženklas
Dahua

Modelis

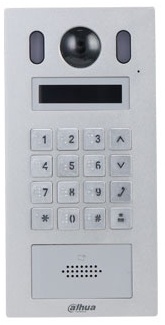

Outdoor Station For VTO6221E-P
Korpuso medžiaga
Aliuminis
Spalva
Sidabro
Ilgis
200 mm
Plotis
98 mm
Aukštis
32 mm
Ekrano tipas
OLED
Ekrano įstrižainė
2.3 "
Įtampa
12 V
Garantija
24 mėn
Papildoma informacija
Integruotas garsiakalbis.

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

• Small size apartment door station
• Supplemental lighting with white light
• 2MP CMOS camera
• Mechanical button with Braille
• Aluminium alloy plate, IP55, IK08
• Door release via password and Mifare card

Technical Specifications:

System
• Main Processor Embedded Micro Processor
• Operation System Embedded LINUX OS
Video
• Video Compression H.264
• Image Sensor 1/2.9” 2MP CMOS
• Auto Gain Control White Light
• Lens 2mm
• Angle of View H:140° V:82°
• Day/Night Color Image
Audio
• Audio Compression G.711
• Audio Input Omnidirectional Mic
• Audio Output Built-in Speaker
• Bidirectional Talk Support Dual-way Bidirectional talk
Display
• Screen 2.3'' OLED
Operation Mode
• Keypad Mechanical Button with Braille
• Reader Mifare Card (13.56MHz)
Interface
• Alarm In/Out 1/1
Door Control
• 1 Relay Out
• 1 RS485
• 1 Feedback
• 1 Exit Button
• Wiegand In 1
Network
• Ethernet 10M/100Mbps
• Network Protocol TCP/IP
General
• Ingress Protection IP55, IK08
• Tamper Switch 1
• Installation Surface & Flush
• Material Aluminum
• Power DC 12V, 2A, PoE(802.3af)
• Power Consumption Standby ?2W, Work ?7W
• Working Temperature -40°C~+60°C
• Relative Humidity 20%~95%RH
• Dimensions 200mm×98mm×32mm
• Weight 1.5Kg
