Features
- Line Interactive UPS
- Compact size
- Microprocessor control guarantees high reliability
- Discharge and overcharge protection
- Auto restart while AC is recovering
- Off mode charging
- Auto Voltage regulator
- Visiual and audible Alarm system
- Cold start on Battery
| Specification | |||

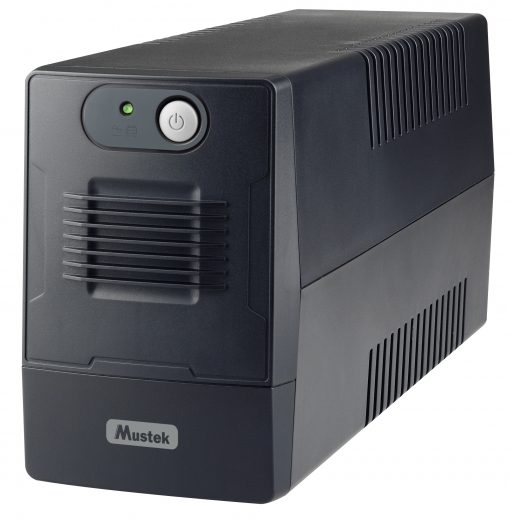

| MODEL | PowerMust 800EG | ||
| INPUT | |||
| Capacity | 800VA/480W | ||
| Nominal Voltage | 220/230/240VAC | ||
| Voltage Range | 162-290 VAC | ||
| Frequency Range | 60/50 Hz (auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | ± 10% | ||
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz | ||
| Transfer Time | Typical 2-6 ms | ||
| Waveform (Batt. Mode) | Simulated Sine Wave | ||
| BATTERY | |||
| Battery Type | 12 V / 9 AH x 1 | ||
| Typical Recharge Time | 4-6 hours recover to 90% capacity | ||
| Protection | Overload, discharge and overcharging protection | ||
| BACKUP TIME | |||
| Half Loading | 5 min. | ||
| Full Loading | 5 sec. | ||
| INDICATORS | |||
| AC Mode | Green Lighting | ||
| Battery Mode | Green flashing | ||
| AUDIBLE ALARM | |||
| Battery Mode | Sounding every 10 seconds | ||
| Low Battery | Sounding every second | ||
| Overload | Sounding every 0.5 second | ||
| Fault | Continuously sounding | ||
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 279 x 101 x 142 | ||
| Net Weight (kgs) | 4,9 | ||
| ENVIRONMENT | |||
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) | ||
| Noise Level | Less than 40 dB | ||
| INTERFACE | |||
| Inlet | Inlet Power | ||
| LED | LED x 1 | ||
| Outlet | 2 x Schuko | ||
