Features
- Line Interactive UPS
- Touch Screen LCD to display UPS information
- Compact size (30,0 x 10,1 x 14,2cm)
- Microprocessor control guarantees high reliability
- Discharge and overcharge protection
- Auto restart while AC is recovering
- Off mode charging
- Visual and audible Alarm system
- Cold start function

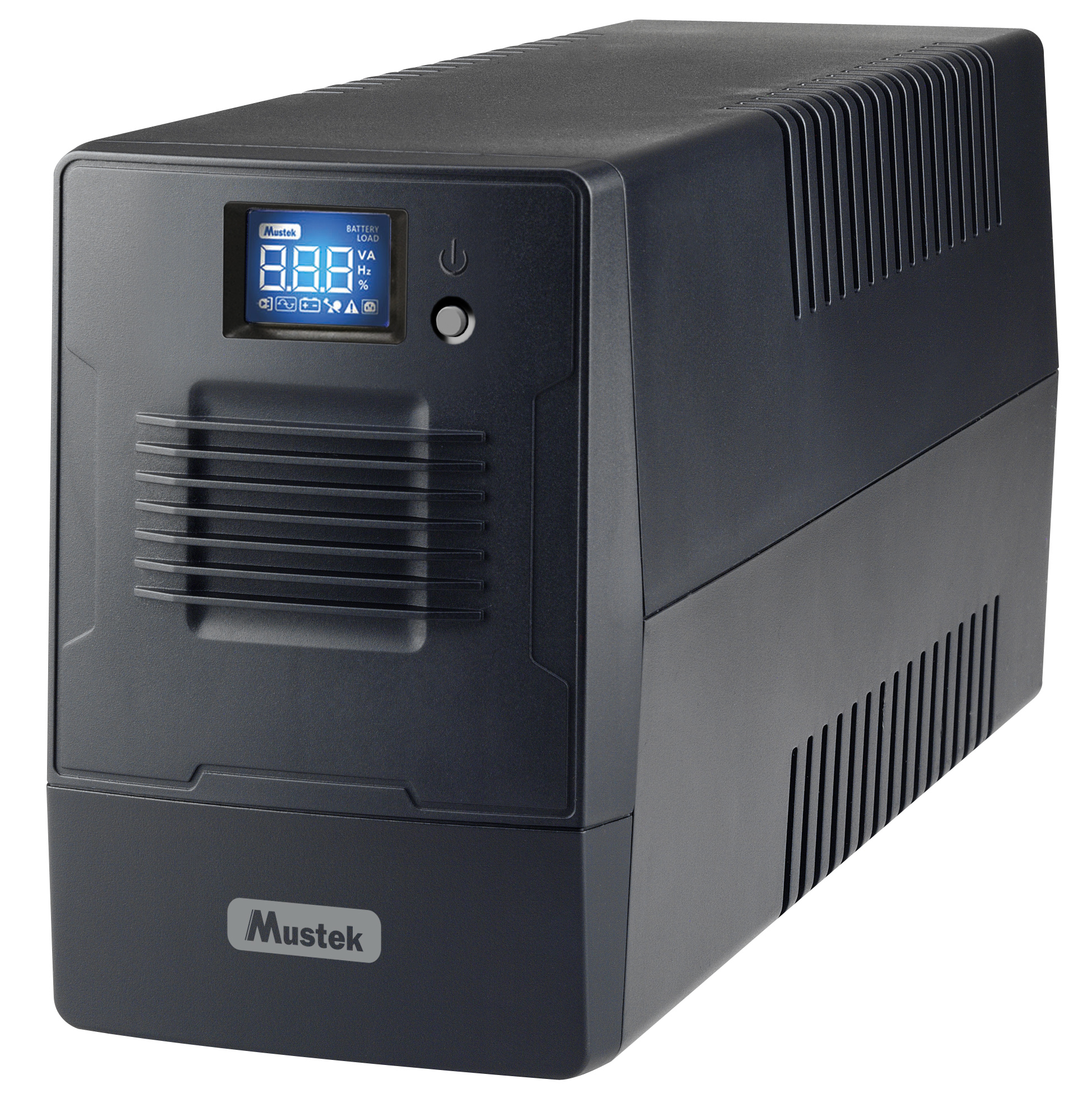

| MODEL | PowerMust 600 LCD |
| INPUT | |
| Capacity | 600VA/360W |
| Nominal Voltage | 220/230/240VAC |
| Voltage Range | 162-290 VAC |
| Frequency Range | 50/60 Hz ± 1 Hz (auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 220 / 230 /240 ± 10% |
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz |
| Transfer Time | Typical 2-6 ms |
| Waveform (Batt. Mode) | Simulated Sine Wave |
| Protection | Overload, discharge and overcharge protection |
| BATTERY | |
| Battery Type | 12 V/ 7 AH x 1 |
| Recharge Time | 4 hours to 90% capacity |
| Backup Time (at 100W load) | 16 min. |
| AUDIBLE ALARM | |
| Battery Mode | Sounding every 10 seconds |
| Low Battery at battery mode | Sounding every second |
| Fault | Continuously sounding |
| Battery replacement | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 300 x 101 x 142 |
| Net Weight (kgs) | 4,5 |
| ENVIRONMENT | |
| Operation Humidity | 0-90% RH @ 0-40˚ C (non-condensing) |
| Noise Level | Less than 40 dB |
| INTERFACE | |
| Power Cord Connector | Schuko input powercord |
| Outlet | Schuko 2 x |
| Phoneline/ Network protection | RJ11 |
| USB port | Yes |
| LED/LCD | LCD |
| MANAGEMENT | |
| USB Port | Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC |
