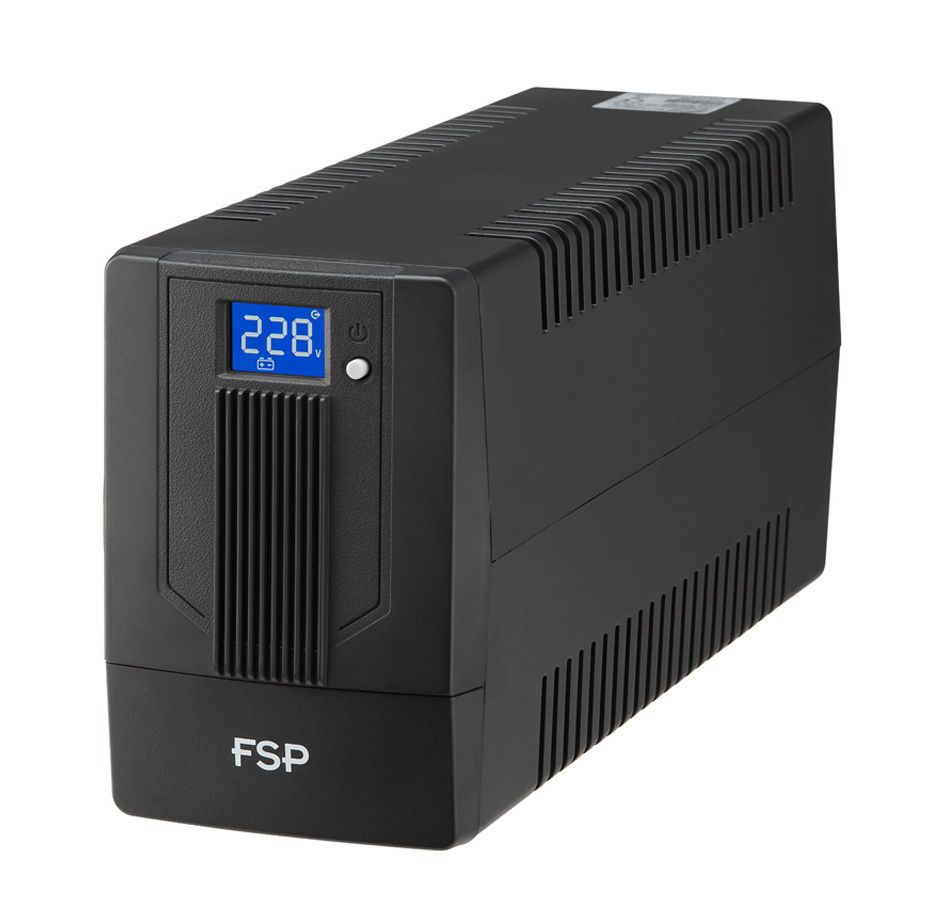

The iFP series is equipped with automatic voltage regulation to reduce the impact of unstable voltage on equipment. The intelligent UPS’ functions can also provide power during outages, and the battery automatically charges when power is restored. FSP’s intelligent UPS can provide equipment with an uninterrupted supply of power at any time.- Touch LCD Display Panel
- USB communication port
- RJ11/RJ45 connector that provides surge protection
- Compact size
- Excellent microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
- Generator compatible (Option)
The iFP-series Intelligent UPS is equipped with a rarely-seen LCD touch panel todisplay the power status and any abnormal conditions to make troubleshootingeasier. Equipment status can be seen in real-time through a USB connection to aPC. In addition, the integrated RJ11/RJ45 connector can mitigate any damagecaused by lightning to phones or network equipment.
Specifications
- Model iFP 800
- Input Capacity 800 VA / 480 W
- Input Voltage Range 110/120 VAC or 220/230/240 VAC
- Input Frequency Range 60/50 Hz (auto sensing)
- Output AC Voltage Regulation ±10%
- Output Frequency 60 Hz or 50 Hz ±1 Hz
- Output Waveform(Batt. Mode) Simulated Sinewave
- Transfer Time Typical 2-6 ms
- Battery Type & Number 12 V/9 Ah, 1
- Battery Typical Recharge Time 4 hours recover to 90% capacity
- Weight 4.9 kg
- Noise Less than 40dB
- Dimensions(L x W x H) 300 x 101 x 142 mm
- Humidity 0-90 % RH @ 0- 40°C (non-condensing)
