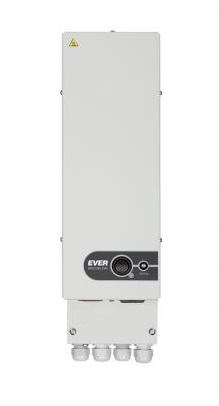

SPECLINE AVR 700 is the newest series of technologically advanced power supply units, which are intended primarily for ensuring the uninterrupted operation of central heating boilers, solar systems, fireplaces with water jackets, pumps, control and automatic systems.
SPECLINE AVR 700 UPS units with a battery module (or a car battery) protect the connected equipment against voltage decays and drops, and eliminate the possibility of damage arising from overvoltage in the mains.
The series of UPS units has a built-in system for regulating (increasing) the mains voltage that adjusts incorrect input voltage to a level that is acceptable to the receivers, without the use of battery power.
SPECLINE AVR 700 UPS units have no built-in batteries - an external battery module or a car battery should be connected to provide back-up power supply.
CHARACTERISTIC FEATURES
CDS System (Clear Digital Sinus) - generates a clear sine wave in the unit's output (in battery mode).
AVR is a system that regulates (increases) the mains voltage automatically, by adapting incorrect input voltage to a level that is acceptable to the receivers, without the use of the battery.
Cold start - for starting the device in battery mode, without connection to the mains.
Possibility to connect up to three battery modules (each rated at 42 Ah) or a car battery rated up to 150 Ah can be connected - for extended back-up operation.
Synchronization with the mains.
Microchip control of all parameters.
Sound indication of discharged battery.
The UPS automatically reverts to mains operation once voltage with proper parameters is detected.
Resistance to overload.
Short circuit protection.
Convenient and universal method of connecting cables.
