Name: UPS įtampos stabilizatorius Eaton, 2100 W
Brand: Eaton
Price: 799 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

UPS įtampos stabilizatoriai

Prekės ženklas

Eaton

Gylis

46 cm

Plotis

19.2 cm

Aukštis

34 cm

Galia

2100 W

Galia (VA)

3000

Akumuliatoriaus tipas

Švino rūgštinis

Akumuliatoriaus talpa

7.2 Ah

Veikimo laikas įkrovus

5 min

Įkrovos laikas

6 h

Darbinė temperatūra

0 - 40 °C

Darbinė drėgmė

0 - 95 %

Ekranas

Įėjimai

1 x RJ11, 1 x RS232, 1x RJ45

Išėjimai

4 x IEC 320 C13

Garantija

24 mėn

Papildoma informacija

Acoustic Noise <50 dBA. Input current distortion <30% THDi. Input power factor > 0.95pf. Input Current (at rated load. with fully charged battery): 11.3A. Input protection rating: 15A. Transfer–normal to stored. energy: No break. Output voltage variation ±2%. Crest factor 3:1. Frequency Slew Rate 1Hz/sec. Number of output phases 1 Phase. Battery Nominal Voltage 96V (48 Cells).

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

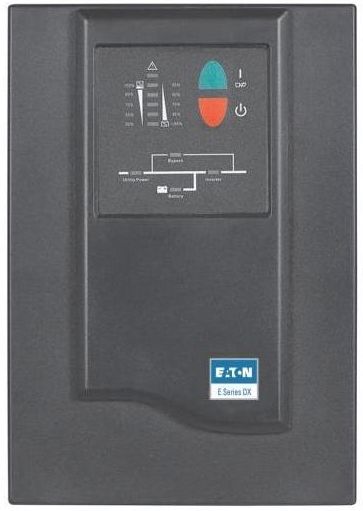

Eaton E Series DX
Prekės aprašymas anglų kalba:

The E series DX UPS double-conversion online UPS from Eaton affordably protects mission-critical applications from downtime, data loss and corruption. The double-conversion architecture incorporates rectifier and inverter stages to completely isolate the output power from all input anomalies. The E series DX avoids battery usage during minor power fluctuations, saving its capacity for times when utility power is completely lost.

Online double-conversion topology
This topology guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the AC to DC then DC to AC conversion process.

High performance and reliability
DX uses High Frequency technology to bring its users a compact. UPS delivers perfect sine wave output.

Automatic bypass
In case of overload or UPS fault, the DX UPS automatically transfers the load to utility AC power.

Advanced communications
An RS232 port is available for easy connection of the UPS to the server.

Cold start-on-battery power
This function ensures trouble-free start-up of your applications even during a utility power outage.

Backup times from five minutes to several hours
DX UPS offers a standard backup time of five to eight minutes on full load to protect the applications.
