Prekės informacija
Prekės aprašymas anglų kalba:
5SC2200IRT

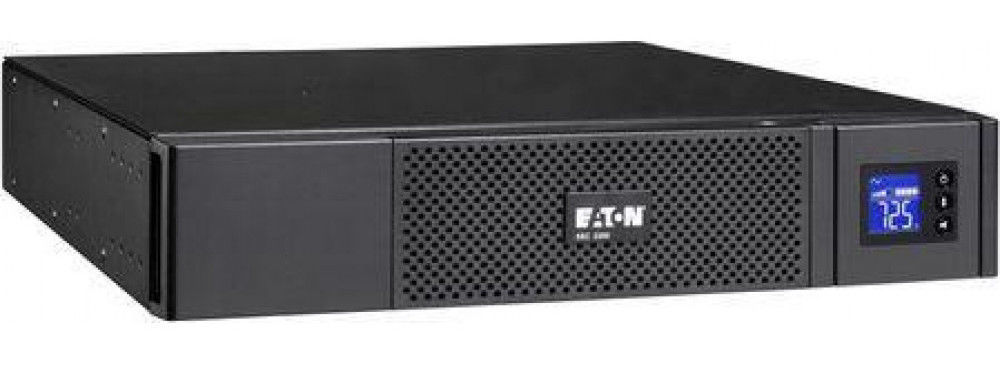

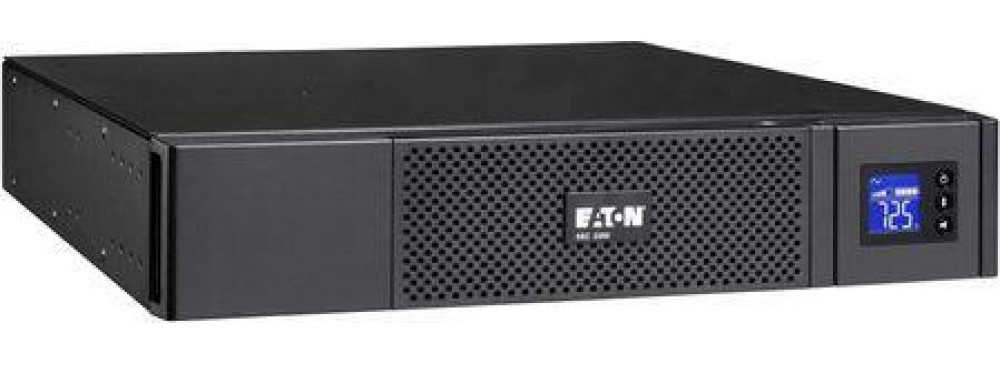

Eaton 5SC 2200 VA Rack/Tower
| General | |
| Topology | Line-interactive high frequency with booster + fader, pure sinewave output |
| Configuration | Rack/Tower |
| Part Number | 5SC2200IRT |
| Color | Black |
| Rating (VA/Watts) | 2200/1980 |
| Dimensions (H x W x D, mm) | 86.2 x 441 x 522 |
| Weight (kg) | 26.5 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C20
|
| Input Voltage Range | 184V-276V |
| Nominal Voltage | 230V |
| Input frequency Range Without Using Batteries | 45–55Hz (50Hz system), 55–65Hz (60Hz system) |
| Electrical Output | |
| Voltages | 230V (+6/–10 %) (Adjustable to 220V/230V/240V) |
| Outlets |
(8) IEC-320-C13
(1) IEC-320-C19
|
| Output Frequency | 50/60Hz +/–0.1 % (autosensing) |
| Battery | |
| Battery Management | ABM®, Automatic battery test, deep discharge protection |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off |
| Communication Slot | 1 slot for Network management card or Relay card |
| Environmental & Standards | |
| Audible Noise | <45 dB |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1, UL 1778 |
| EMC Markings | IEC/EN 62040-2 |
| Approvals | CE, CB report (TUV) |
