Prekės informacija

Bendrosios charakteristikos

Prekės tipas

UPS akumuliatoriai

Prekės ženklas

CSB

Ilgis

151 mm

Plotis

51 mm

Aukštis

98 mm

Matmenys

151 x 98 x 51 mm

Svoris

1.95 kg

Baterijos talpa

0.006 Ah

Garantija

24 mėn

Papildoma informacija

Įtampa: 12 V. Maksimali įkrovimo srovė: 2,4 A.

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

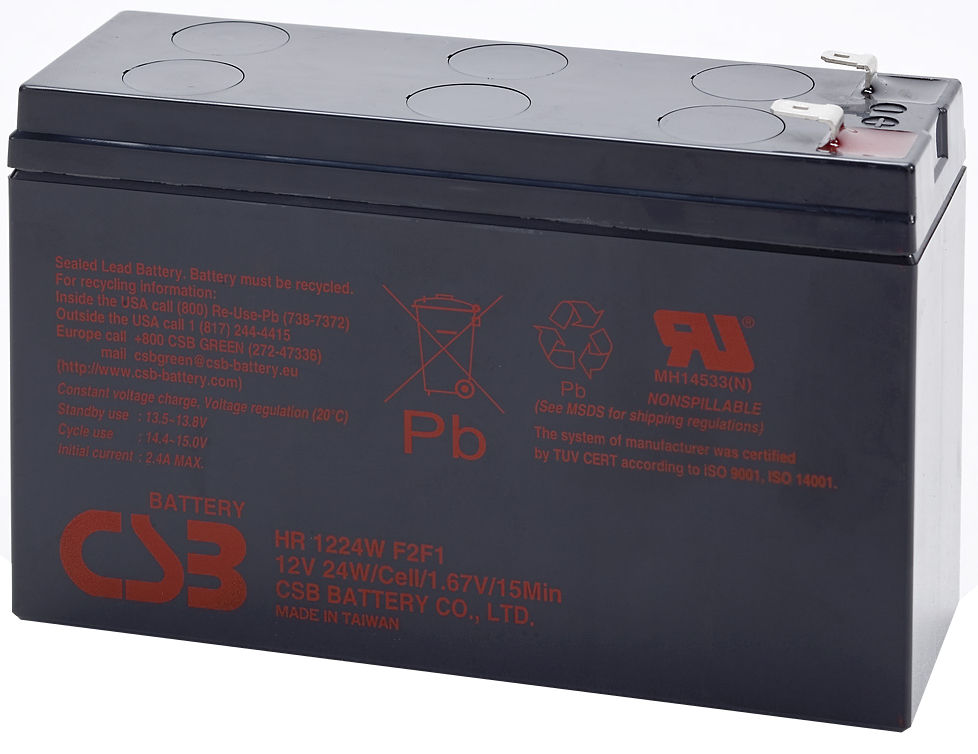

CSB Battery HR 1224W 12V 24W HR1224W 12 V 24.0w/cell HR 1224W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used for more than 260 cycles at 100% discharge in cycle service, up to 5 yeas in standby service. Specification Cells Per Unit 6 Voltage Per Unit 12 V Capacity 24W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F) Weight Approx. 1.95kg. (4.30 lbs.) Maximum Discharge current 100/130A (5sec.) Internal Resistance Approx. Approx. 20.6mΩ Operating Temperature Range Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F) Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F) Recommended Maximum Charging current limit 2.4A Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F) Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ Terminal F1/F2-Faston Tab187/250 Container Material ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
