Name: Termo tarpinė Akasa
Brand: Akasa
Price: 6.91 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Termo padai

Prekės ženklas
Akasa
Papildoma informacija
Matmenys (viena pagalvėlė): 30 x 30 mm. Storis: 1.5 mm. Medžiaga: silikono elastomeras. Spalva: mėlyna. Šilumos laidumas: 1,2 W/mK. Tvirtumas: 27. Tankis: 1.78 g/cc. Temperatūros diapazonas: -40 °C - 160 °C. Šilumos plėtimosi koeficientas (CTE): 600 ppm/C. Kiekis: 2 vnt.

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Prekės aprašymas anglų kalba:

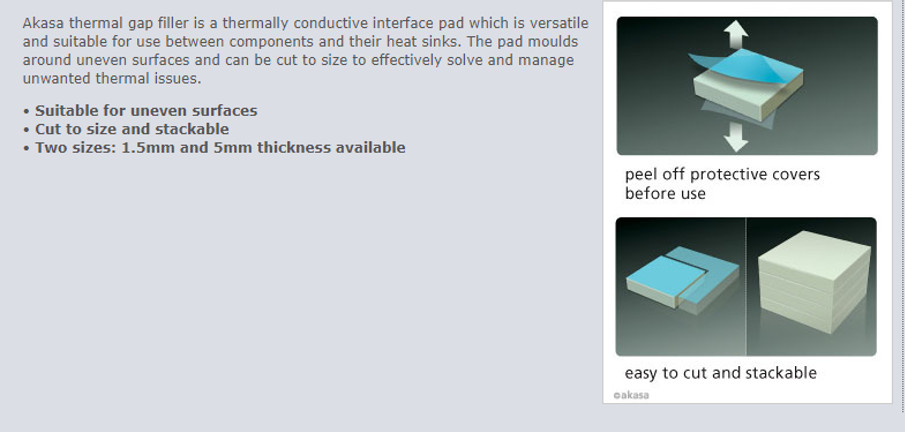

Akasa thermal pads are a real alternative to traditional thermal grease in many applications. The Themal pads offer some advantages over liquid or viscous materials. Thus, the two pads can be cut easily even to the required size, the uncertainty when applying paste or smearing during the smoothing omitted. In addition, the Akasa pads are easily self-adhesive and usually initially hold themselves in the previously assigned position.

Of course, the fixation in the further course of assembly can not be completely dispensed with, since heat source, thermal pad and heatsink (or the heat delivery surface) should come into contact with as large a surface area as possible in order to ensure optimum heat transfer. Here, too, Akasa meets the user maximum by the 30 x 30 mm large, blue pads are available in several strengths, the version offered here is 1.5 mm thick. In addition, the material is pleasantly flexible and adaptable, which makes it useful in many places.

To mention just a few application examples: RAM water coolers, alternative graphics card coolers, chipset coolers and many other components where it is important to effectively dissipate waste heat (eg on cooling fins, heatpipes, radiators, heatsinks, etc.). Since the Akasa thermal pads do not conduct electricity, there are virtually no limits to the imagination of most electronic components. On the other hand, the pads with a high thermal conductivity of 1.2 W / mK make some thermal grease look old.

Note: The application is at your own risk! Caseking assumes no liability for damage caused by improper use or use in unsuitable fields of application. A sufficiently high heat transfer should be carefully checked after installation!
