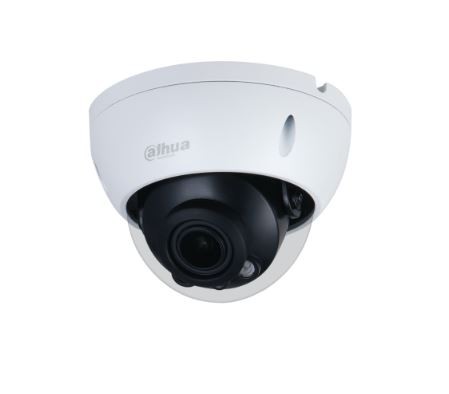

Dome IP camera DAHUA IPC-HDBW1431R-ZS-S4
White dome housing _
1/3 " 4Mpx CMOS sensor
Built-in 2.8 ~ 12mm lens, MOTOZOOM
Built-in illuminator with 2 SMART IR LEDs
Illuminator range up to 40m
H.264 / H.265 compression , Smart Codec
20fps recording at 4Mpix
BLC, HLC, WDR, AWB, AGC, DNR, ROI functions
IP67, IK10 protection
DAHUA camera with built-in 1/3 "4Mpx CMOS sensor, ideally suited for use inside and outside the building thanks to the housing with IP67 and IK10 protection . The device has a built-in 2.8 ~ 12mm zoom lens with the MOTOZOOM function and works in a resolution of 4Mpix (2688x1520) ) .
The camera has a built-in infrared heater with 2 SMART IR LEDs with a range of up to 40m (depending on the air transparency), so it can show the image even in complete darkness. Features such as: BLC, HLC, WDR, AWB, AGC, DNR, ROI allow you to get an even better image from the camera.
Support for Cloud Operation (P2P)
Remote viewing from anywhere in the world - all you need is Internet access
No need for port forwarding and no public address or DNS domain
Quick configuration of functions - you just need to know the ID number , login and password of the device
Remote access from various devices:
PC (MAC, Windows)
Mobile (iOS, Android)
The software is available on our website in the Software and Updates tab (for PC) and in the Play Store (Android) and AppStore (iOS)
MOTOZOOM function
The camera has a built-in varifocal lens with the MOTOZOOM function that allows you to control the focal length of the lens remotely from the recorder, smartphone and web browser. This feature is of course supported by Auto Focus , so the camera will never lose focus.
The device uses a modern H.265 video compression algorithm , which is designed to reduce the size of saved files without losing image quality. The use of this compression in the device allows you to collect a large amount of information with little disk space requirement and will ensure fast file transfer between devices. The latest H.265 standard is the successor to the H.264 standard and allows for twice the data compression while maintaining the same quality. The use of the Smart Codec function allows you to save even more disk space by analyzing the motion in the image. With a static image, the amount of data is reduced to a minimum. During movement, Codec analyzes only the part of the image on which the movement takes place.
IR illuminator - Mechanical infrared filter
The camera has a built-in infrared illuminator, which allows you to illuminate the area in front of the camera in complete darkness . In conditions of insufficient visibility, the camera switches to black and white mode and the IR LEDs turn on. The mechanical infrared filter is also removed. Thanks to such treatments, we obtain better sensitivity of the camera at night.
Smart IR function
The camera with the Smart IR function provides a clear and perfectly lit image in a dark environment. The operation is based on the fact that the camera automatically regulates the intensity of infrared light depending on the environment, which eliminates the overexposure of an object close to the camera.
ROI function
The Region of Interest system allows you to increase the quality of the recorded image in the fragments of the observed scene indicated by the user. Thanks to the ROI function, it is possible to capture recordings economically and save the total size of video files while maintaining the original image quality in priority monitoring areas.
IP67 protection
The camera has an IP67 housing resistant to bad weather conditions such as wind, hail or rain, so it is suitable for indoor and outdoor installation.
IK10 enclosure
The camera is enclosed in a vandal -proof IK10 housing , thanks to which it is resistant to various acts of vandalism and attempts to destroy the camera .
WDR Function - Wide Dynamic Range
The camera has the WDR (WIDE DYNAMIC RANGE) function , which skillfully reduces too bright or dark parts of the image. The image is exposed in the same way in all areas. This allows for a clearer and more detailed picture. The function is very useful when the camera is directed towards the front door or window where a lot of sunlight comes in
Smart PSS program for managing DVRs and network cameras. The most important functions:
Software for managing devices IPC, NVR, DVR, NVD, NVS, SVR
Support for 1000 channels (max 256 devices)
Max. Live view 256 channels ( 4 x 64 windows )
Cooperation max. with 4 monitors
Application: end user, small businesses, projects, video monitoring centers
Creation and operation of eMAP
TV WALL support
Cooperation max. with 4 monitors
Control of PTZ cameras , audio support
PrevNext
Remote access via web browsers such as Internet Explorer and Mozilla Firefox allows you to easily control devices without installing additional programs on your computer, and allows you to manage them from any computer.
