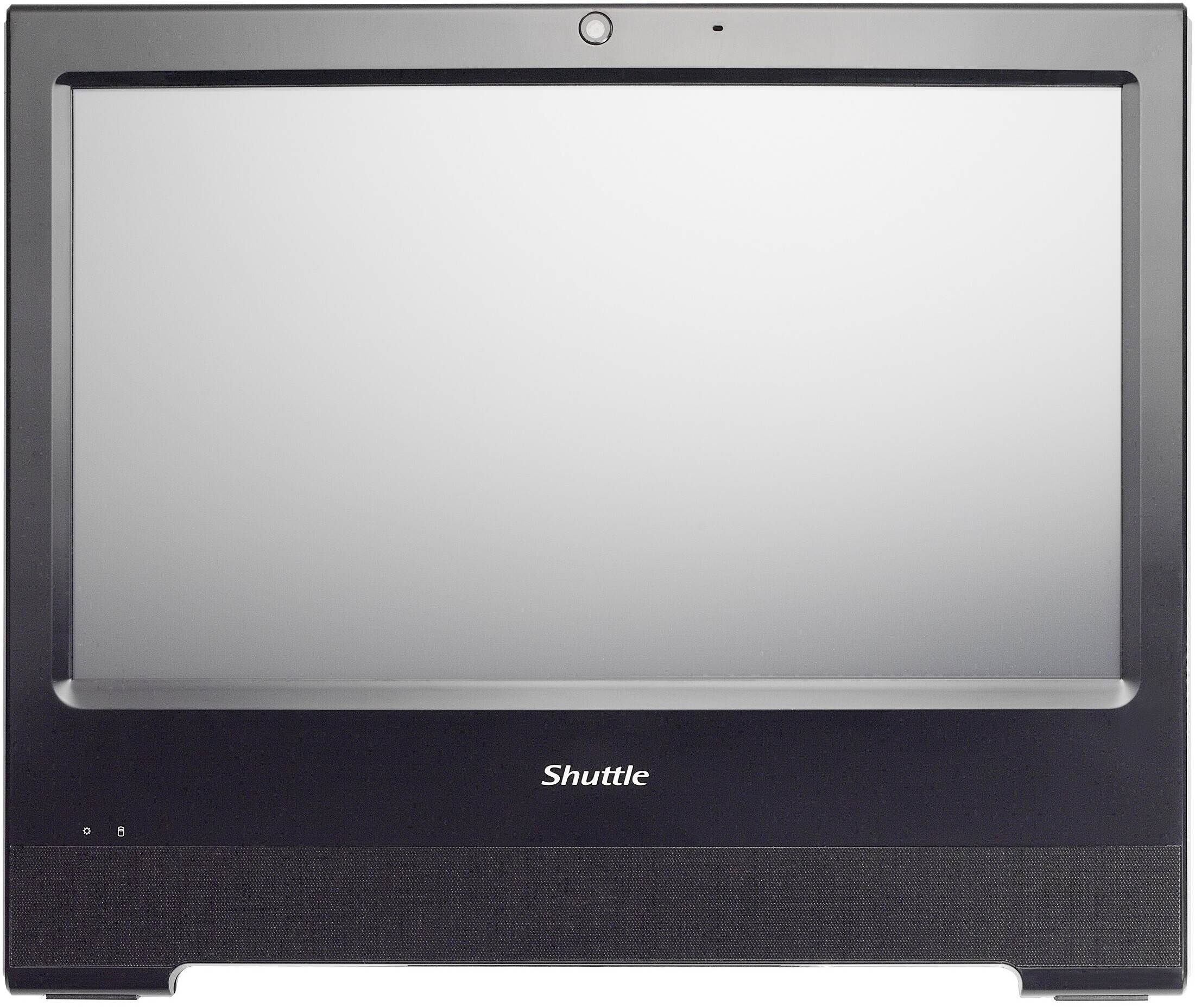

The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
INTERNAL USB PORT
Licence dongles, 4G modems or any USB sticks can be plugged into an internal USB type A slot inside this model. In this way, they are protected against theft and manipulation.
SPACE FOR A 2.5" DRIVE
As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5" format*. Hard disks and SSDs in this format offer many terabytes of storage space.
(*Up to a height of 12.5 mm)
FLEXIBLE STAND
The elegant yet solid stand can be adjusted continuously to achieve the ideal viewing angle and an ergonomic operating position. It can also be used as a carrying handle.
ADD-ONS VIA M.2 MODULE
Two M.2 slots make it possible to add data mediums and additional modules, for example for wireless LAN or cellular modem. Thanks to the PCI Express connection, large quantities of data can be transported in a short time via the M.2 slot.
UP TO 64 GB OF RAM
Modern professional applications consume a particularly large amount of memory. With two slots and therefore 64 GB of RAM in total, this PC can handle any demanding task.
TWO CONNECTIONS FOR EXTERNAL SCREENS
Thanks to an HDMI and VGA connection, the screen area of this model can be easily expanded. A total of three screens are available; for example, for customer information and for advertising content.
HDMI 1.4B
100% FANLESS
Energy-saving technology combined with an ingenious cooling system mean no fans are required. No operating noise at all, fewer moving parts and therefore lower maintenance costs too.
HOW DOES THIS WORK?
Thanks to a simple physical principle, known as convection. Warm air rises while entraining colder air at the same time. This permanent flow passes through machines or travels along surfaces. This prevents a build-up of heat and ensures reliable cooling.
PREPARED FOR VESA MOUNTS
A VESA 100×100 mounting surface is hidden behind the cover of the stand. Wall mounts, movable arms and appropriately standardised mountings of all kinds can be mounted as an alternative to the stand, secured with four screws.
READING AND WRITING MEMORY CARDS
Discreetly hidden in the front panel is an SD card reader that allows convenient handling of memory cards, such as those often found in smartphones, cameras, microcomputers or drones.
INTEGRATED HD CAMERA
A camera module with full HD resolution and microphone sits behind protective glass in the upper edge of the screen. It is suitable, for example, for scans, object recognition or video calls.
ANTI-THEFT PROTECTION
The Kensington security slot on the side of the case (also called K-Slot or Kensington Lock) serves as an anti-theft device. Suitable security solutions in various designs are available from specialist dealers.
