Name: Stacionarus kompiuteris Shuttle X50V7U3L Intel® Core™ i3-8145U, Intel® UHD Graphics 620, 15.6 "
Brand: Shuttle
Price: 617.83 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Stacionarūs kompiuteriai

Prekės ženklas

Shuttle

Modelis

X50V7U3L

Kompiuterio tipas

All In One kompiuteriai

Įdiegta operacinė sistema

DOS

Procesorius ir pagrindinė plokštė

Procesoriaus tipas

Intel

Procesoriaus klasė

Intel® Core™ i3

Procesoriaus modelis

Intel® Core™ i3-8145U

Procesoriaus branduoliai

Procesoriaus dažnis

2.1 GHz

Procesoriaus maksimalus dažnis

3.9 GHz

Operatyvioji atmintis

Operatyviosios atminties tipas

DDR4

Operatyvioji atmintis (RAM)

–

Kietasis diskas

Laikmenos tipas

SSD

Kietojo disko talpa (HDD)

–

Vaizdas ir garsas

Vaizdo plokštės tipas

Intel

Vaizdo plokštės serija

UHD

Vaizdo plokštės modelis

Intel® UHD Graphics 620

Vaizdo plokštės atmintis

Dynamic

Garso plokštės modelis

Stereo

Jungtys

2 x USB 3.2, 2 x USB 3.2 Gen 1

Integruotas kortelių skaitytuvas

Taip

Palaikomos atminties kortelės

SD, SDHC, SDXC

Korpusas ir papildomi įrenginiai

Korpuso dydis

All in One (AIO)

Optinis įrenginys

Integruotas mikrofonas

Taip

Ekrano tipas

LCD

Ekrano įstrižainė

15.6 "

Maitinimo bloko (PSU) modelis

Maitinimo bloko (PSU) galia

65 W

Matmenys, svoris ir spalva

Ilgis

39.1 cm

Plotis

32.7 cm

Aukštis

4.2 cm

Spalva

Juoda

Svoris

3.6 kg

Papildomai

Garantija

24 mėn

Papildoma informacija

Pasyvus aušinimas su šilumos vamzdeliais, be ventiliatoriaus triukšmo, Idealiai tinka naudoti triukšmui jautrioje aplinkoje, Be ventiliatoriaus, be dulkių, todėl beveik nereikia priežiūros

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

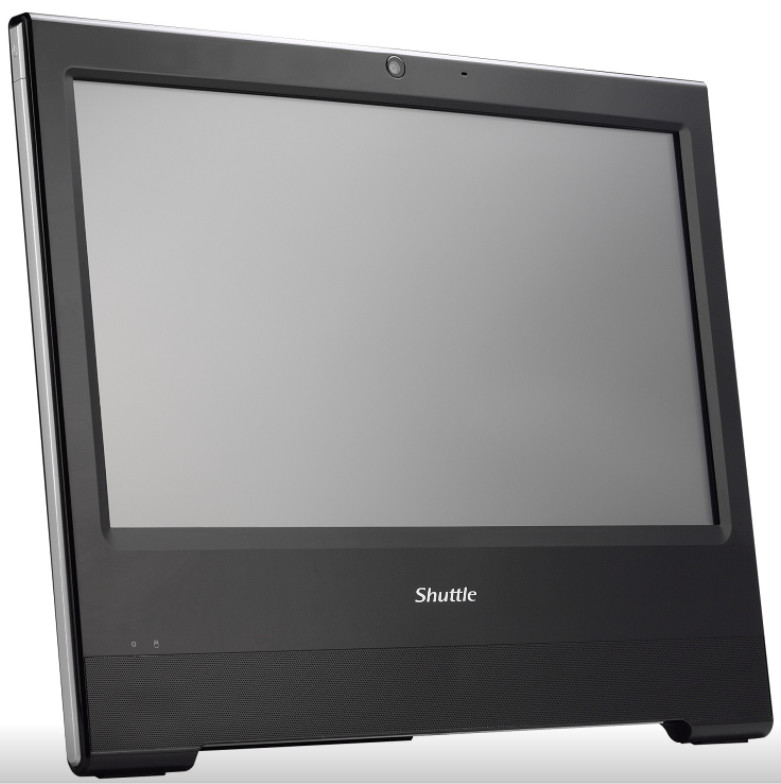

Shuttle BarBo X50V7U3L Core i3-8145U black

Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54.
Chassis
Colour: black or white
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.6 kg net, 4.8 kg gross
Operating system
This system comes without operating system.
It is compatible with:
- Windows 10 - 64-bit
- Linux - 64-bit
Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Stylus for the built-in touchscreen
39.6cm display (15.6")
39.6 cm / 15.6" LCD display, ratio: 16:9 wide-screen panel
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mm
Processor
Model: Intel Core i3-8145U (ULV)
System-on-a-chip architecture (SoC) with integrated memory and graphics controller: no chipset required
FCBGA1528 package - directly soldered onto the mainboard
Code name: Whiskey Lake U (8th Generation Intel Core)
Cores / Threads: 2 / 4
Clock rate: 1.8 GHz
Max. Turbo Frequency: 3.9 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 4 MB
TDP wattage: 15 W maximum
Manufacturing process: 3rd-generation enhanced 14nm++
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Integrated Graphics
Intel UHD Graphics 620
GPU clock frequency: 300~1000 MHz
Execution Units (EUs): 24
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology
Up to three displays simultaneously
Two video ports support two additional independent screens:
1) HDMI 1.4a supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
Special conditions for operation in Multi-Monitor mode:
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports hardware monitoring and Watchdog functionality
Supports Firmware TPM v2.0 functionality
Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2400 (PC4-19200) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 12.5 mm in height
M.2-2280 Slot
The M.2 2280 BM is compatible with
SSD cards with SATA interface (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 80 mm (type 2280).
Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam
Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2 W speakers
Integrated Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via HDMI.
Wired Network
Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE)
Prepared for WLAN (optional)
This product comes with two pre-mounted internal WLAN antennas
and has a M.2-2230-E slot for an optional M.2-WLAN card.
The case also features two 6.5 mm perforations for the installation of external WLAN antennas, which must be pruchased separately.
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors left side
Power button
2x USB 3.2 Gen 1 (5 Gbps)
SD card reader
Hole with power button
Hole with Clear CMOS button
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Connectors bottom side
HDMI 1.4a (supports digital video and digital audio)
2x USB 3.2 Gen 1 (5 Gbps)
2x USB 2.0
Gigabit Network (LAN, RJ45)
Audio Line-out / head-phones (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapter (5.5 / 2.5 mm)
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Optional: 2x COM/serial (RJ45), DIO (RJ11) for cash drawer (accessory POS01)
Connectors rear side
VGA connector (D-Sub 15 pol., analog video)
Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)
Connectors onboard
Internal USB 2.0 type A connector for a USB stick
Serial ATA (6 Gbps)
Serial ATA power connector
3x USB 2.0 header (all occupied)
eDP connector (Embedded DisplayPort) - occupied by the display
Connector for optional COM/LPT adapter POS01 or PCL71
Power adapter
External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC Input connector
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Included Accessories:
Quick Guide
Driver DVD
External Power Adapter (65W / 19V)
Power cord
Serial ATA cable for the 2.5" drive
Screws
Optional Accessories:
PCL71: COM / LPT / RJ11 adapter:
- 1x Parallel (25p D-Sub)
- 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
POS01: COM / LPT / RJ11 adapter:
- 1x Parallel (25p D-Sub)
- 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
- 2x Serial RS232 (8p RJ45)
- 1x DIO/RJ11 connector for cash drawer supports 12 / 24V
PF55: Carrying bag
Environmental criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %, non-condensing
Certification and Compliance
EMI: CE, FCC, BSMI, RCM, VCCI, RED
Safety: CB, BSMI, ETL
Other compliances: RoHS, ErP Lot3, Energy Star v6.0
Conformity
This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 2014/53/EU Radio Equipment Directive (RED)
