Prekės informacija

Bendrosios charakteristikos

Prekės ženklas

Modelis

Access Unit M RFID

Spalva

Juoda

Įtampa

8 - 12 V

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

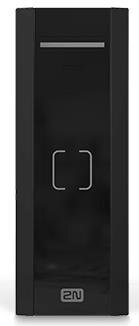

2N® ACCESS UNIT M RFID MULTIFREQUENCY

The unit reads cards at frequencies of 125 kHz and 13.56 MHz. This comes in handy if you have several companies in one building, each of them using different cards and they share certain areas. It also includes a controller with full decision intelligence. All you need to install and power the unit is a single UTP cable. The customer saves money on readers and you save time on installation and configuration.

Interfaces
Power supply:	PoE and/or 12 V/1 A DC
PoE:	802.3af (Class 0–12.95 W)
LAN:	10/100BASE-TX with Auto-MDIX, RJ-45 female (pigtail)
Recommended cabling:	Cat-5e or better
Active switch output:	8 to 12 V DC/max 600 mA
Passive switch:	NO/NC contacts, up to 30 V/1 A AC/DC
Inputs:	2 inputs - in passive/active mode (-30 V to +30 V DC)
	OFF = open or Uin> 1.5 V
	ON = short-circuit or Uin< 1.5 V
Tamper switch:	native part of the 2N Access Unit M
Audio:	buzzer, 1 W/8ohm
Supported protocols:	DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

Mechanical Properties
Cover:	tempered glass with durable plastic
Operating temperature:	-40°F to + 140°F
Storage temperature:	-40°F to +158°F
Operating relative humidity:	10%-95% (non-condensing)
Dimensions (surface mounted):	1.969 (W) x 5.236 (H) x 1.063 (D) inch
Weight:	max 1,1 pounds
Cover rating:	IP55 and IK07

RFID Card Reader
Supported frequencies:	13.56 MHz variant
	125 kHz and 13.56 MHz variant
125 kHz:	EM4100, EM4102
13.56 MHz:	ISO14443A, ISO14443B, NFC support
	reads UID (CSN)
