Prekės informacija

Bendrosios charakteristikos

Prekės ženklas
2N

Modelis
Access Unit M
Spalva
Juoda
Įtampa
8 - 12 V
Garantija
24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

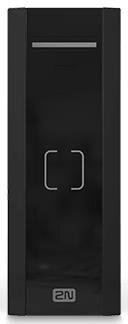

This version of the 2N® Access Unit M RFID reader can read most cards at a frequency of 13.56 MHz. It is suitable for companies which prefer traditional RFID technology. The reader supports NFC technology, so employees who don’t want to wear a card can use their mobile phone to gain access. Administer a unit remotely via the secure web interface or in the 2N® Access Commander software

Interfaces
Power supply:	PoE and/or 12 V/1 A DC
PoE:	802.3af (Class 0–12.95 W)
LAN:	10/100BASE-TX with Auto-MDIX, RJ-45 female (pigtail)
Recommended cabling:	Cat-5e or better
Active switch output:	8 to 12 V DC/max 600 mA
Passive switch:	NO/NC contacts, up to 30 V/1 A AC/DC
Inputs:	2 inputs - in passive/active mode (-30 V to +30 V DC)
	OFF = open or Uin> 1.5 V
	ON = short-circuit or Uin< 1.5 V
Tamper switch:	native part of the 2N Access Unit M
Audio:	buzzer, 1 W/8ohm
Supported protocols:	DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
RFID Card Reader
Supported frequencies:	13.56 MHz variant
13.56 MHz:	ISO14443A, ISO14443B, NFC support
	reads UID (CSN)

Mechanical Properties
Cover:	tempered glass with durable plastic
Operating temperature:	-40°C to +60°C
Storage temperature:	-40°C to +70°C
Operating relative humidity:	10%-95% (non-condensing)
Dimensions (surface mounted):	50 (W) x 133 (H) x 27 (D) mm
Weight:	max 0.5 kg
Cover rating:	IP55 and IK07
