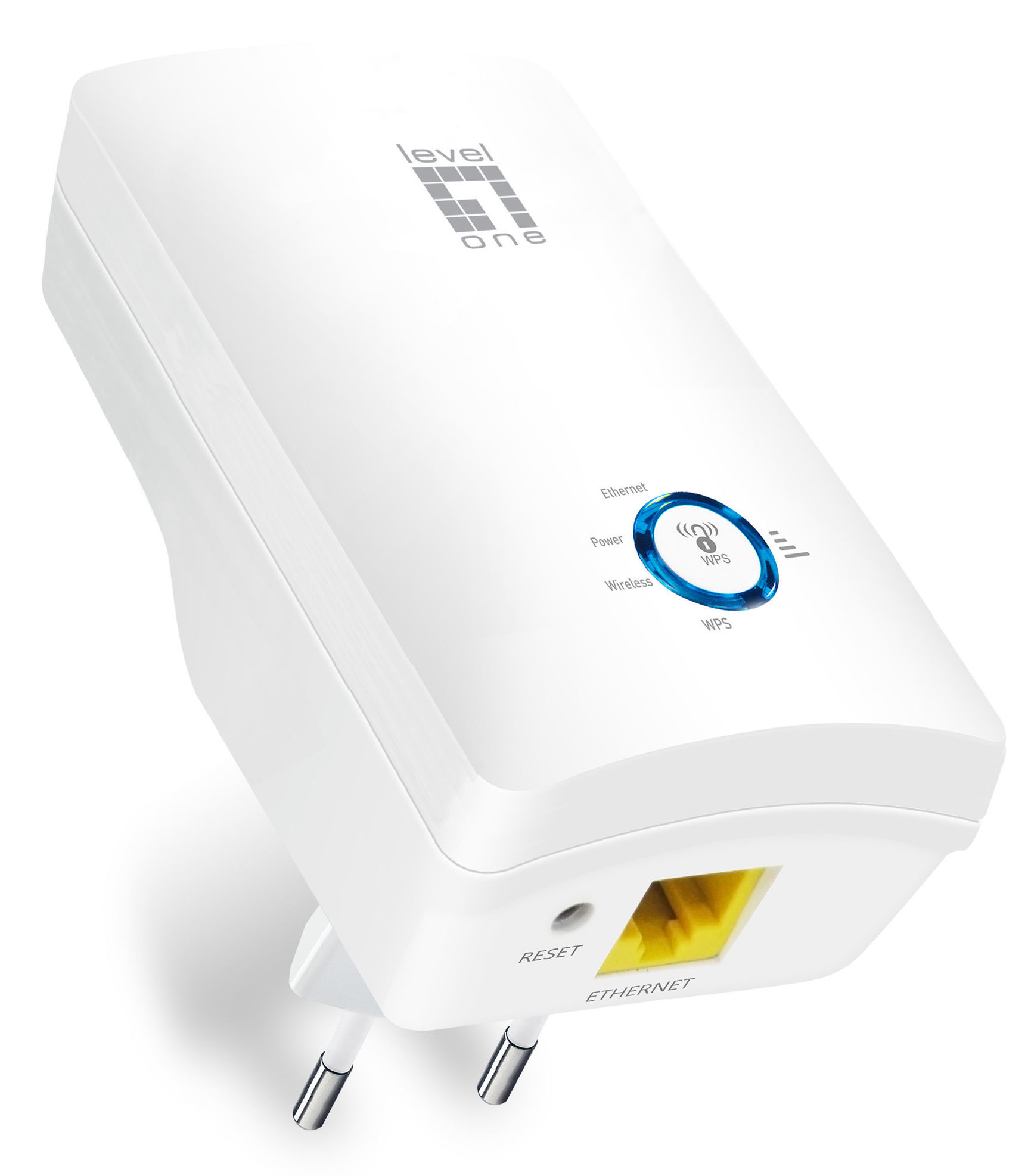

Signalo stiprintuvas LevelOne AC1200 WRE-8011E

The LevelOne WRE-8011E is a versatile, easily deployed 802.11ac/n dual band Wi-Fi range extender that offers excellent throughput speed of up to 1200Mbps across both 2.4 and 5Ghz bandwidths combined, as well as high security. Perfect for expanding WLAN at home or in the office, the unit is designed for mounting to a wall, making WRE-8011E a good option for extending the range of the WLAN in a convenient and low profile deployment.

Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.11a,IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ,IEEE 802.11AC Wireless Networking

Port: 1x 10/100Mbps Base-TX

Button/Knob:
WPS Button
Reset Button

Indicator: Power, Wifi signal, WPS, LAN,
Power Input: 110-220VAC

Operating Temperature (°C):
Storage: -20 – 70°C
Operating: 0 – 40°C

Operating Humidity (Non-condensing):
Storage: 20 ~ 95%
Operating: 20 ~ 90%

Operating Mode: Repeater Mode, Bridge, AP
Encryption:
WEP 64/128-bit Web share key encryption WPA,WPA2,802.1x
WPA, WPA2-PSK TKIP/AES encryption, WPA-PSK802.1x

Receive Sensitivity(dBm):
2.4GHz:
802.11n (20MHZ_MSC0): Range?-85? dBm
802.11n (40MHZ_MCS0): Range (-82) dBm
802.11g 6Mbps: Range (-85) dBm
802.11g 54Mbps: Range (-68) dBm
802.11b 1Mbps: Range (-83) dBm
802.11b 11Mbps: Range (-76) dBm

5 GHz:
802.11a 6Mbps: Range (-85) dBm
802.11a 54Mbps: Range (-65) dBm
802.11n (20MHZ_MCS0): Range (-82) dBm
802.11n (40MHZ_MCS0): Range (-79) dBm
802.11ac (20MHZ_MCS0): Range (-82) dBm
802.11ac (40MHZ_MCS0): Range (-79) dBm
802.11ac (80MHZ_MCS0): Range (-76) dBm

Wireless Channels:
Ch.1 ~ 11 USA
Ch.1 ~ 13 EU
Ch.36~48
Ch. 52~ 165

EIRP(dBm):
(Controllable for different country regulations)
802.11ac: up to 15dBm ± 1dBm
802.11n: up to 17dBm ± 1dBm
802.11g: up to 20dBm ± 1dBm
802.11b: up to 20dBm ± 1dBm

Antenna:
2.4GHz : 2 x 3dBi Internal Antenna
5GHz: 2 x 4dBi Internal Antenna

Frequency Band:
2.4 ~ 2.4835 GHz
5.15 ~ 5.25 GHz
5.25 ~ 5.825 GHz

Data Transfer Rate:
802.11ac : 866Mbps
802.11n: 300 Mbps
802.11g: 54 Mbps
802.11b: 11 Mbps

General: VPN: PPTP, IPSec, L2TP Passthrough
Management: Web-Based GUI Configuration
QoS: IEEE 802.11e Wi-Fi Multimedia (WMM)

Ease of Use:
Web-based GUI with Quick Installation Wizard
Web-based (HTTP) firmware upgrade

Number of Clients: 20
