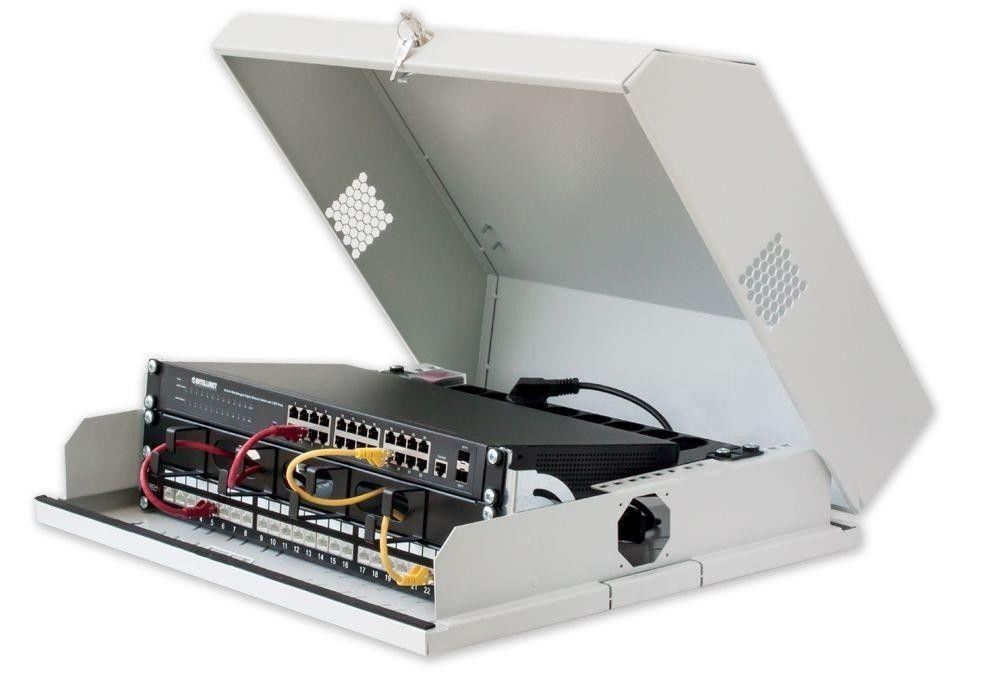

Wall cabinet 19" 6 + 3 units, wall mounted, fully pre-assembled• Compact design with a total height of just 150 mm, ideal for low space installations• The wardrobe allows installation of up to 9 total units of which 3 in vertical and 6 in horizontal for patch panels, power sockets or other shallow devices• Hardened glass window cover with keylock and locking mechanism for secure opening up to 180°• Prefabricated profile for cable entry• On the side there are additional ventilation holes with 80%• Dimensions: 537 x 146 x 475 mm (W x H x D)• Gray RAL7035 ColorSpecifications• Steel wall mount housing for wall mounting with a total height of only 150 mm• Three vertical units are available on 180 ° rotatable front bracket, allowing 19 "devices to be installed with a maximum depth of 360 mm;• Other 6U horizontal for mounting 19 "components with a maximum permissible depth of 80 mm• The special cabinet structure offers up to 6 possible configurations for effective indoor space use• Top lid with hardened glass window and key lock; Equipped with a durable hinge and locking mechanism for a secure opening• Side-mounted holes with 80% grid panel for additional ventilation• Base with 2 pre-cut profiles 70x100 mm (sides) and 1 by 50x100 mm for cable entry (rear)• Load capacity up to 30 kg• Degree of protection: IP 20• Color: RAL7035, light grayPackage Contents• Wall cabinet 19" 9 unit Gray
