Serverių spinta Linkbasic

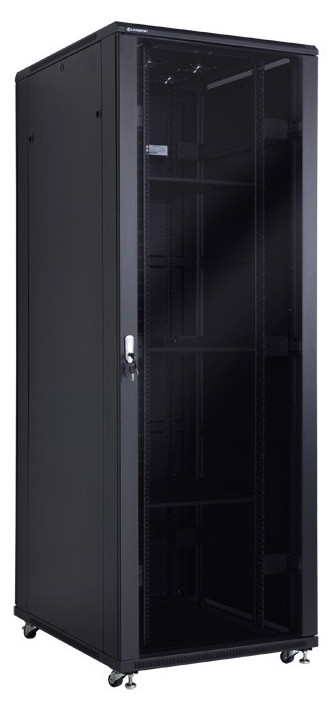

NCB-series 42U data communication cabinet of 800mm in width and 1000mm in dimensional depth is widely used in computer network installations, broadcasting systems, and automation system control installations.

The front doors are equipped with safety glass of 5mm in thickness. Back doors are made of full steel of 1.2mm in thickness. Both the front and the back are closed with a lock. There is a possibility of closing the side panels after mounting optional inserts.

Robust design, aesthetic appearance, and color selection allow to put the cabinets not only in places designated for that purpose, but also in the office or at home.

Adjusting the cabinet to you own needs is possible through the door set selection between aesthetic glass door in the front and full steel door in the back, and perforated steel single-leaf front door and double-leaf back door with better ventilation properties.

Thanks to a set of shelves, a power strip and a ventilation fan as standard equipment, the product is ready to use without any additional expenses, while a wide range of optional accessories allows to expand the installation further on.

• Standard equipment: power strip, a set of shelves, ventilation panel
• Side doors mounted on latches with a lock assembly option
• A rack rail indicating the amount of units (U)
• Adjustable feet and transport wheels of high durability
• Two cable ducts - ceiling and floor
• A frame with a load capacity of 800kg
• Cold-rolled steel
• Frame thickness: 1.2 mm
• Mounting rail thickness: 2.0 mm
• Side panel thickness: 1.2 mm

• Protection class IP20
• Surface finish: degreasing, etching, phosphating, powder coating
• Protection against rust, oxidation, scratches, corrosion
• Front door - glass
• Full steel back doors
• Available in black RAL9004
• Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
• Compatible with metric ETSI and 19-inch international standards
