Serverių spinta Linkbasic

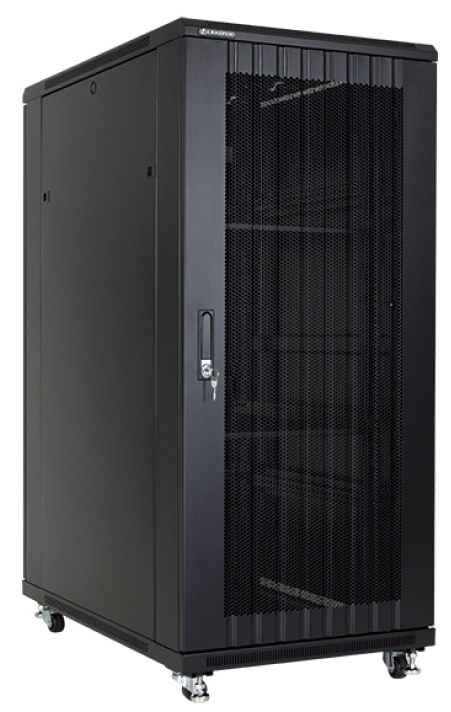

NCB-series 27U data communication cabinet of 600mm in width and 1000mm in dimensional depth is widely used in computer network installations, broadcasting systems, and automation system control installations.

Perforated steel front doors and two-leaf perforated back doors provide better ventilation properties. Both the front and the back are closed with a lock. There is a possibility of closing the side panels after mounting optional inserts.

Robust design and aesthetic appearance allow to put the cabinet not only in places designated for that purpose, but also in the office. Thanks to a set of shelves, a power strip and a ventilation fan as standard equipment, the product is ready to use without any additional expenses, while a wide range of optional accessories allows to expand the installation further on.

The color of the cabinet is black RAL9004.

• Standard equipment: power strip, a set of shelves, ventilation panel

• Side doors mounted on latches with a lock assembly option

• A rack rail indicating the amount of units (U)

• Adjustable feet and transport wheels of high durability

• Two cable ducts - ceiling and floor

• A frame with a load capacity of 800kg

• Cold-rolled steel

• Frame thickness: 1.2 mm

• Mounting rail thickness: 2.0 mm

• Side panel thickness: 1.2 mm

• Protection class IP20

• Surface finish: degreasing, etching, phosphating, powder coating

• Protection against rust, oxidation, scratches, corrosion

• Front door - perforated steel

• Two-leaf perforated steel back doors

• Available in black RAL9004

• Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards

• Compatible with metric ETSI and 19-inch international standards
