Name: Serverių operatyvioji atmintis Kingston, DDR4, 32 GB, 2666 MHz
Brand: Kingston
Price: 234.14 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Serverių operatyvioji atmintis

Prekės ženklas
Kingston

Techniniai duomenys

Operatyviosios atminties tipas
DDR4

Atminties talpa
32 GB
Atminties ciklo uždelsimas
CL19
Operatyviosios atminties taktinis dažnis
2666 MHz
Įtampa
1.2 V
Klaidų taisymo kodas (ECC)
Taip

Papildomai

Garantija
24 mėn

Papildoma informacija
Registruota atmintis

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

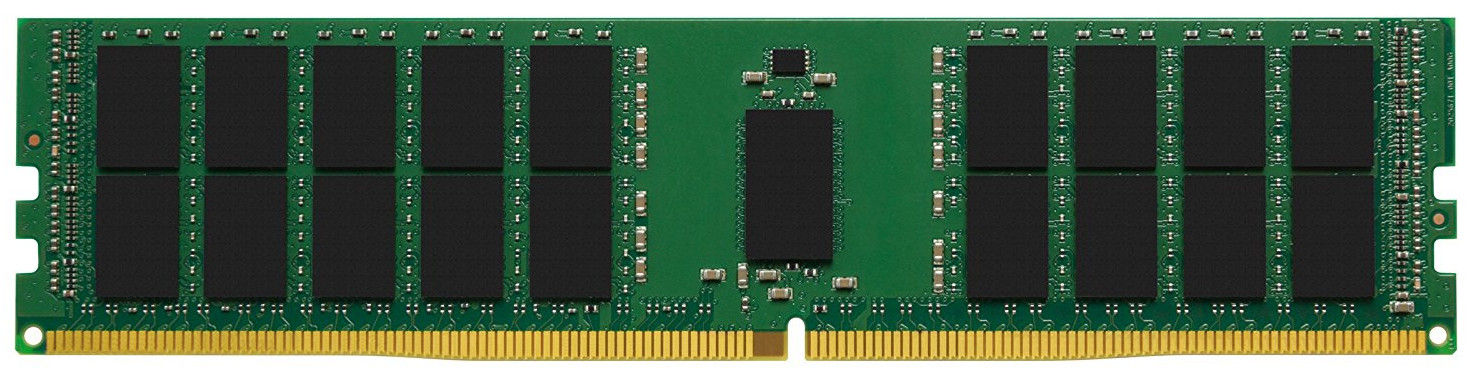

Kingston 32GB 2666MHz CL19 DDR4 ECC
Prekės aprašymas anglų kalba:

Kingston's KSM26RD4/32HAI is a 4G x 72-bit (32GB)
DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 2G x
4-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:

• Power Supply: VDD=1.2V
• VDDQ = 1.2V
• VPP - 2.5V
• VDDSPD=2.25V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet
• 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive.
• Per DRAM Addressability is supported
• Internal Vref DQ level generation is available
• Write CRC is supported at all speed grades
• CA parity (Command/Address Parity) mode is supported
