Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Dėžė

Prekės ženklas

APC

Modelis

NUAPCR42314

Ilgis

107 cm

Plotis

75 cm

Aukštis

199.1 cm

Savybės

NetShelter SX NetShelter SX tinklo korpusas yra dar viena puiki APC IT korpusų šeima, ypač tinkama didelio tankio tinklo programoms.

Spalva

Juoda

Vienetai pakuotėje

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

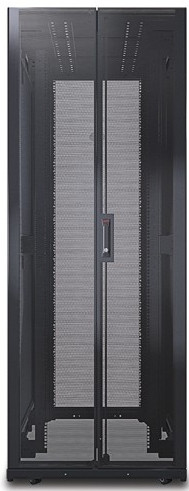

AR3140 Rack NetShelter SX 42U NETWORKING

NetShelter SX The NetShelter SX network enclosure is yet another family of excellent APC enclosures for IT devices, particularly well suited for high-density networking applications. Integrated high-capacity cable clamps and a roof for easy access to cables allow you to install large wiring harnesses. Network enclosures in combination with the transverse directional airflow kit provide complete separation of cold air aspirated from the hot air blown by large network switches and director-class SAN switches.

Assembly Mounting Components- Documentation on the CD, Keys- Doors and side panels with compatible notches- Leveling feet- Mounting accessories- Pre-installed castors- Side panels- User's Guide- Vertical cable organizers

Maximum height: 1991.00 mm- Maximum width: 750.00 mm- Maximum depth: 1070.00 mm- Shipping weight: 168.18 KG- Height in transport package: 2118.00 mm- Width in transport package: 850.00 mm- Shipping Height: 1219.00 mm- Weight (static load): 1363.64 KG- Weight (dynamic load): 1022.73 KG- Minimum installation depth: 279.00 mm- Maximum mounting depth: 819.00 mm- Height in the rack: 42U- Cabinet width: 19 "

Units per pallet: 1.00- vertical posts: 16 gauge- Front door: 16 gauge- rear door: 16 gauge- Top cover: 18 gauge- EIA mounting rails: 14 gauge- Side panels: 18 gauge
