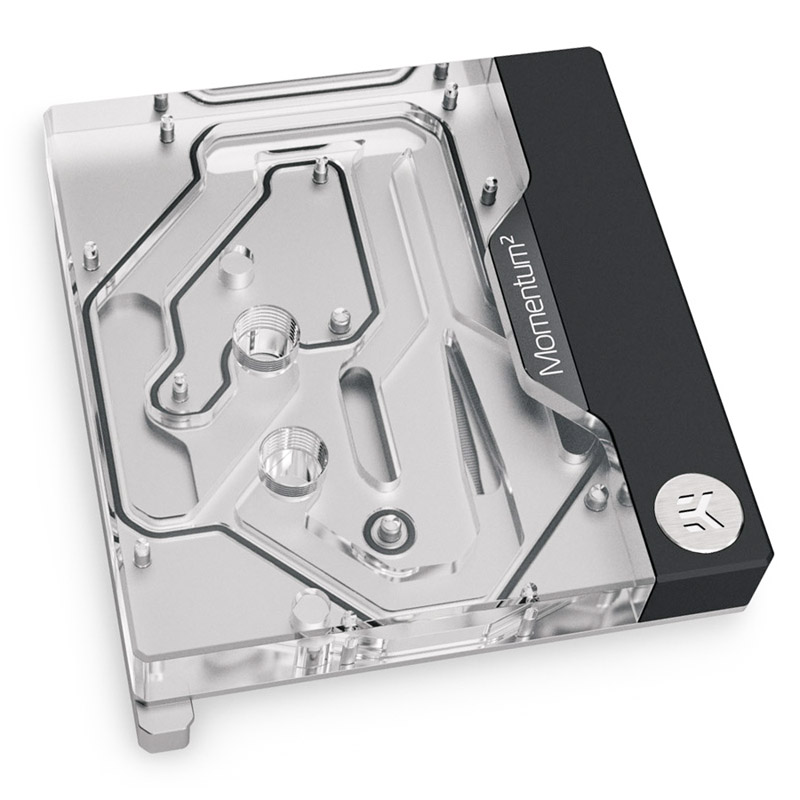

Panelė EK Water Blocks EK-Quantum Momentum² ROG Maximus Z690 Hero D-RGB - Plexi, 13.3 cm, skaidri/sidabro

EK-Quantum Momentum² ROG Maximus Z690 Hero D-RGB is a Quantum Line monoblock specially designed for the ROG Maximus Z690 Hero motherboard, featuring the newest Velocity² cooling engine with low restriction and high performance. This is a complete all-in-one (CPU and motherboard) liquid cooling solution for Intel® 12th generation Alter Lake processors. This Momentum² monoblock is EK-Matrix7 compliant.

This monoblock uses the latest generation of EK-Quantum Velocity² cooling engine to ensure the best possible CPU cooling while not reducing flow to other components. OptiFlow cooling engine uses a specific combination of mounting pressure and coldplate geometry tailored for the IHS and die layout of Intel LGA 1700 socket processors. This monoblock provides cooling for the voltage regulation module, 12th Gen Intel® Core™ CPU, as well as the LAN controller chip.

Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, the EK-Quantum Momentum² ROG Maximus Z690 Hero D-RGB features a high flow design and it can be easily used with the system using weaker water pumps or lower pump speed settings as well. The Quantum Momentum² monoblock also comes with sophisticated D-RGB (addressable) lighting with a total of 8 LEDs. They connect to a standard 3-pin 5V D-RGB addressable header, named Aura Gen2 header on this ROG motherboard.

The base of the monoblock is made of nickel-plated electrolytic copper while the top is made of quality cast acrylic material. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation.

Unlike other solutions on the market, this is a true one-piece, sturdy and reliable liquid cooling product that requires only two connector fittings for proper operation. For the CPU, please use the enclosed (electrically non-conductive) thermal grease EK-TIM Ectotherm.

This product is compatible with ASUS Aura Sync RGB control software. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the AURA addressable Gen2 LED header.

Technical specifications:
- Dimensions: (LxHxW) - 133 x 120,5 x 32mm
- D-RGB cable length: 500mm
- D-RGB LED count: 8
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Enclosed:
- EK-Quantum Momentum² ROG Maximus Z690 Hero D-RGB Monoblock
- Mounting mechanism
- Thermal grease EK-TIM Ectotherm
- Thermal pads
- Backplate
