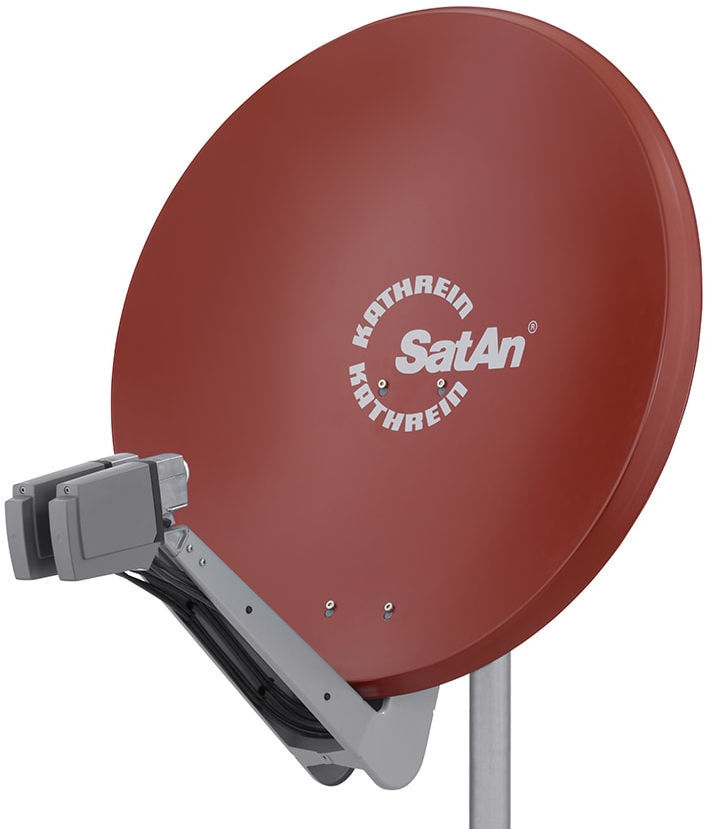

Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Palydovinės TV antenos

Prekės ženklas
Kathrein
Dažnių diapazonas
10.7 - 12.75 GHz
Stiprinimo koeficientas
39.6 dB
Efektyvumo kampas
20 °
Poliarizacija
Apvali
Reflektorius
Offset
Papildoma informacija
Skersmuo: 90 cm

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

¬ Includes reflector, feed system mounting and mast clamp¬ Reflector in proven aluminium design, powder-coated¬ Patented tiltable multi-feed adapter plate in robust, corrosion-resistant die-cast aluminium¬ All connectors (screws, rivets, washers, M10 threaded clips) are made of corrosion-resistant stainless steel or die-cast zinc¬ Snap cable clips of weather-proof plastic for up to eight coaxial cables¬ Mast mounting bracket made of hot-dip galvanised sheet steel¬ High installation comfort: High installation comfort: Completely pre-mounted, reflector keyhole fixing system, large wing nuts angled for AF 17 open-ended spanner, elevation scale on both sides¬ Optimal electrical data in lowest mechanical dimensions due to o°set feed and slewable multi-feed adapter plate allowing the feed systems to be positioned into the secondary focal points typical in multi-feed reception¬ Exchangeable multi-feed adaptor plate included in scope of delivery¬ Available in graphite, white or red brown¬ Feed system mounting made of galvanised sheet steel, powder coated¬ No additional components are required to be able to mount two universal feed systems to receive the signals of satellites 3° to 4° (ASTRA 19.2°/23.5°) or 6° (e.g. ASTRA/ EUTELSAT-HOTBIRD) apart on the boom
