Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

MSI

Modelis

MEG Z790 ACE MAX

Lustas (chipset)

Intel® Z790

Pagrindinės plokštės matmenys

Ilgis

305 mm

Plotis

244 mm

Plokštės dydis

ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1700

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR5

Maksimalus operatyviosios atminties kiekis (RAM)

192 GB

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

Tinklo plokštė

2x Intel® 2.5Gbps LAN. 802.11 a/ b/ g/ n/ ac/ ax/ be

Išplėtimo lizdai

PCI Express 4X jungtys

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

D-Sub jungtys

DVI jungtys

HDMI lizdų skaičius

DisplayPort jungtys

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

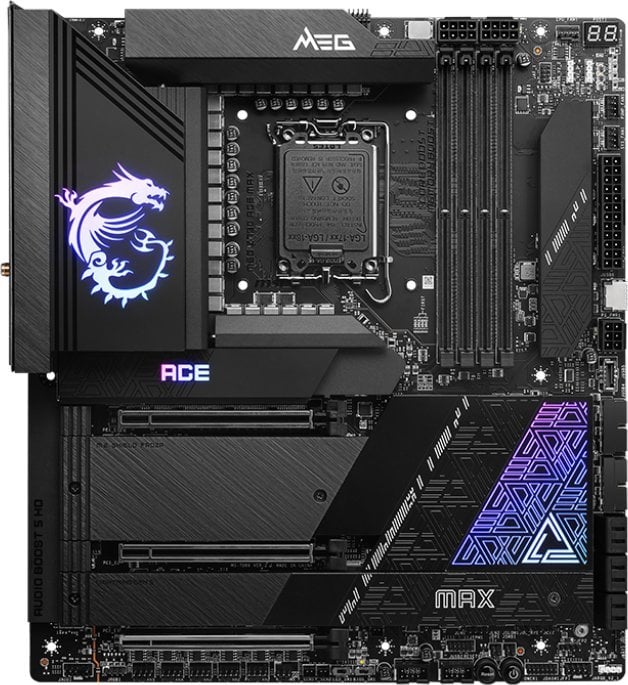

Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel®'s 14th Gen and 13th Gen Core processors to new heights. With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.

The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Stacked Fin Array Design
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.

Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Aluminum Backplate
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.
Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
