Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

MSI

Modelis

Mag B760M Mortar WIFI

Lustas (chipset)

Intel® B760M

Pagrindinės plokštės matmenys

Ilgis

244 mm

Plotis

244 mm

Plokštės dydis

Micro-ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1700

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR5

Maksimalus operatyviosios atminties kiekis (RAM)

192 GB

Operatyviosios atminties taktinis dažnis

4800 MHz, 5000 MHz, 5200 МHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000+ MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis

Realtek ALC897

Tinklo plokštė

Realtek® 2.5Gbps LAN. 802.11 a/ b/ g/ n/ ac/ ax

AMD CrossFire

nVidia SLI

Išplėtimo lizdai

PCI Express 1X jungtys

PCI Express 4X jungtys

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

D-Sub jungtys

DVI jungtys

HDMI lizdų skaičius

DisplayPort jungtys

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.
7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

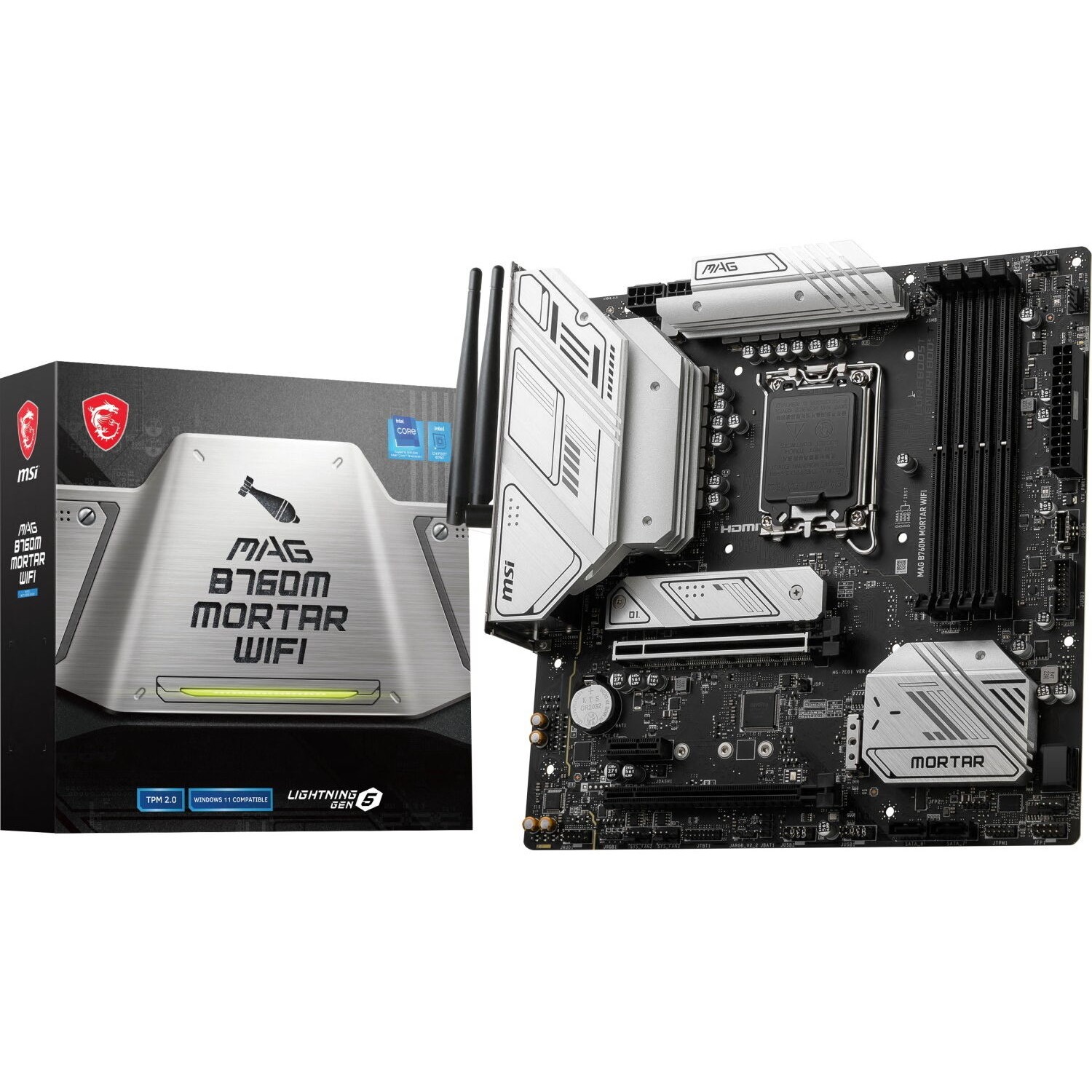

MAG B760M MORTAR WIFI
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7000+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
