Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Pagrindinės plokštės

Prekės ženklas
Asus
Modelis
ROG MAXIMUS Z790 EXTREME
Lustas (chipset)
Intel® Z790

Pagrindinės plokštės matmenys

Ilgis
305 mm

Plotis
277 mm
Plokštės dydis
E-ATX

Procesorius

Procesoriaus tipas
Intel

Procesoriaus lizdo tipas
LGA 1700
Procesoriaus lizdų skaičius
1

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis
4

Operatyviosios atminties tipas
DDR5
Maksimalus operatyviosios atminties kiekis (RAM)
128 GB
Operatyviosios atminties taktinis dažnis
4800 MHz, 5000 MHz, 5200 МHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800+ MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis
ROG SupremeFX 7.1 Surround Sound High Definition Audio ALC4082

Tinklo plokštė
Intel® 2.5Gb Ethernet
AMD CrossFire
Ne
nVidia SLI
Ne

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys
6

M.2 lizdų skaičius
5

Išplėtimo lizdai

PCI Express 4X jungtys
1

PCI Express 16X jungtys
2

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius
2

USB 3.x jungčių skaičius
12
Ethernet LAN (RJ-45) lizdas
Taip
D-Sub jungtys
0
DVI jungtys
0
HDMI lizdų skaičius
1
DisplayPort jungtys
0
PS/2 jungtys
0

Papildomai

Garantija
24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

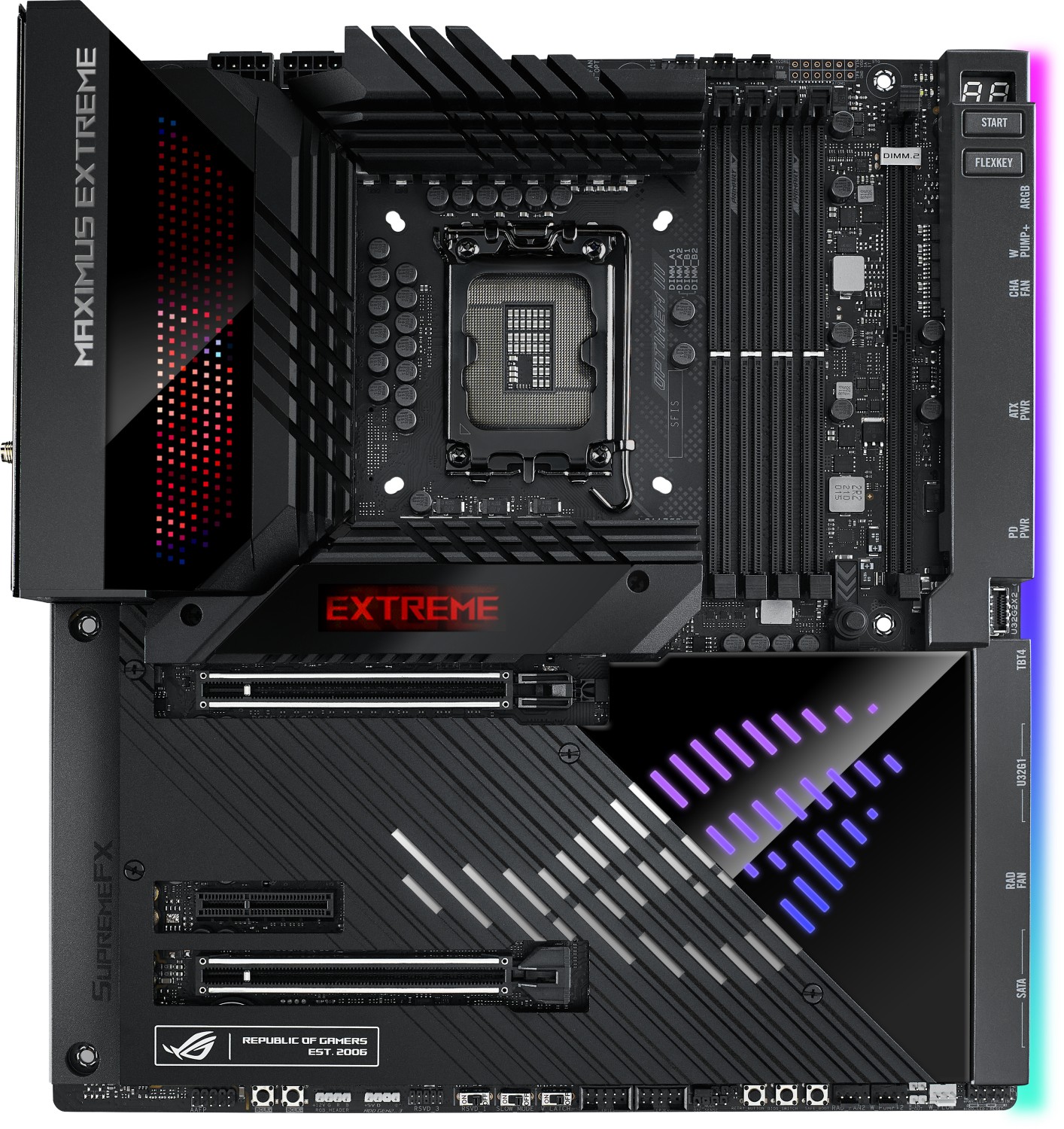

ROG MAXIMUS Z790 EXTREME

Intel® Z790 LGA 1700 EATX motherboard with 24 + 1 power stages, DDR5, five M.2 slots, on-board PCIe® 5.0 NVMe® SSD slot, two PCIe 5.0 x16 SafeSlots, Wi-Fi 6E, Thunderbolt™ 4 port and front-panel connector, USB 3.2 Gen 2x2 Type-C® port and front-panel connector with Quick Charge 4+ up to 60W, PCIe Slot Q-Release, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting

Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
Dominant Power Solution: 24 + 1 teamed power stages rated for 105A with dual ProCool II power connectors, high-quality alloy chokes, and premium metallic capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Next-Gen M.2 Support: On-board PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots all with front and back heatsinks, and two additional PCIe 4.0 M.2 slots on the ROG DIMM.2
Abundant Connectivity: Thunderbolt™ 4 USB Type-C® port and front-panel connector, USB 3.2 Gen 2x2 Type-C® port and front-panel connector with Quick Charge 4+ up to 60W, eight additional USB 3.2 Gen 2 ports, two PCIe 5.0 x16 SafeSlots, HDMI® 2.1
High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax), Marvell® AQtion 10Gb, Intel 2.5 Gb Ethernet, and ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218 Quad DAC for up to 32-Bit/384 kHz playback
Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash Color OLED, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
DIY Friendly Design: ROG Water Cooling Zone, PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button
Renowned Software: Bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
