Name: Pagrindinė plokštė Asus ROG Maximus Z690 Extreme Glacial
Brand: Asus
Price: 2459 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

Asus

Modelis

ROG Maximus Z690 Extreme Glacial

Lustas (chipset)

Intel® Z690

Pagrindinės plokštės matmenys

Ilgis

305 mm

Plotis

277 mm

Plokštės dydis

E-ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1700

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR5

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis

ROG SupremeFX 7.1 ALC4082

Tinklo plokštė

Intel 2.5Gb; Marvell AQtion 10Gb, Wi-Fi 6 (802.11ax)

AMD CrossFire

nVidia SLI

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

M.2 lizdų skaičius

Išplėtimo lizdai

PCI Express 1X jungtys

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

D-Sub jungtys

DVI jungtys

HDMI lizdų skaičius

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Extreme Glacial

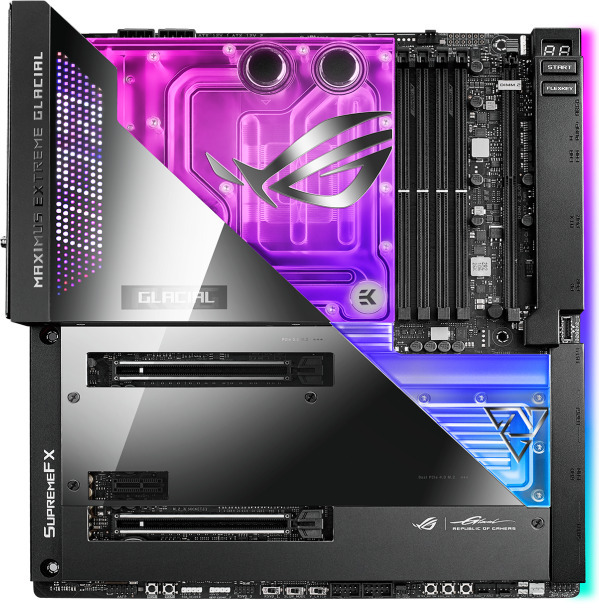

ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12 Gen Intel Core processors can take advantage of.

ROG X EK ULTRABLOCK
The Z690 Extreme Glacial UltraBlock is far more than a heatsink with water channels. This product of a close collaboration with industry leader EK Water Blocks is a complete solution for custom-loop motherboard cooling, covering the CPU, VRMs, onboard M.2 slots, PCH, and even the integrated LAN. EK Active Contact Cooling can keep M.2 drives at optimal temperatures, while 57 microfins swiftly channel water over the central processor. The ROG Water-Cooling Zone offers a sensor array that continually monitors coolant flow, temperatures, and seal integrity, and the PCH cooling block features a fin stack to enhance heat dissipation. Meanwhile, the UltraBlock has an aesthetic to match its performance, thanks to the industry-first AniMe Matrix display and a 2-inch OLED LiveDash that can display live system stats.

EK ULTRABLOCK
The Ultrablock effectively cools the CPU, VRM, mid-board M.2 slot, and Z690 chipset, ensuring system stability even under sustained high load.

M.2 HEATSINKS
The M.2 heatsink keep the dual M.2 SSD at optimum operating temperature for consistent performance and reliability.

M.2 BACKPLATES
Integrated M.2 backplates help ensure that high-performance drives deliver peak performance, even when airflow is restricted

COOLING
The ROG Maximus Z690 Extreme Glacial features an arsenal of headers, sensors and tuning software to maximize the performance potential of a small army of fans and radiators.

PERFORMANCE
ROG Maximus Z690 Extreme Glacial uses stock clock speeds merely as a reference point. Piles of teamed power stages work alongside high-grade capacitors and chokes, inviting breakthroughs that can leverage a high-performance 12th Gen Intel Core processor to leave all competition in the dust.

CONNECTIVITY
ROG Maximus Z690 Extreme Glacial features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.

OPTIMIZATION
ROG Maximus Z690 Extreme Glacial features best-in-class automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.

PERSONALIZATION
In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme Glacial’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.

INTELLIGENT MOTHERBOARD
Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.
