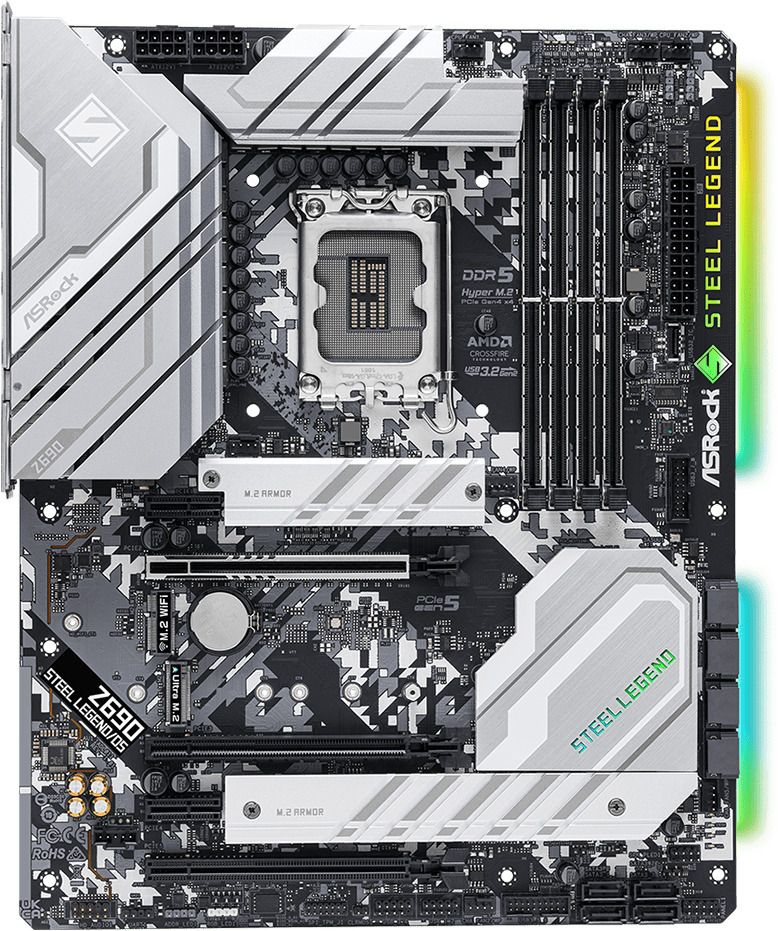

Name: Pagrindinė plokštė ASRock Z690 Steel Legend/D5
Brand: ASRock
Price: 271.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

ASRock

Modelis

Z690 Steel Legend/D5

Lustas (chipset)

Intel® Z690

Pagrindinės plokštės matmenys

Ilgis

305 mm

Plotis

244 mm

Plokštės dydis

ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1700

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR5

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

6000+ MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Vaizdo plokštės modelis

Intel Xe

Garso plokštės modelis

Realtek ALC897

Tinklo plokštė

Dragon RTL8125BG 10/100/1000/2500

AMD CrossFire

Taip

nVidia SLI

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

M.2 lizdų skaičius

Išplėtimo lizdai

PCI Express 1X jungtys

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

D-Sub jungtys

DVI jungtys

HDMI lizdų skaičius

DisplayPort jungtys

PS/2 jungtys

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

2oz Copper PCB
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

DDR5 Memory with Protection Circuit
Reinforced DIMM Slot
DIY Friendly Design
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio
Audio That Matters
Enhance Communication Quality
Ultimate Gaming Experience
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Anti-Drop Screw
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Flexible Integrated IO Shield
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
