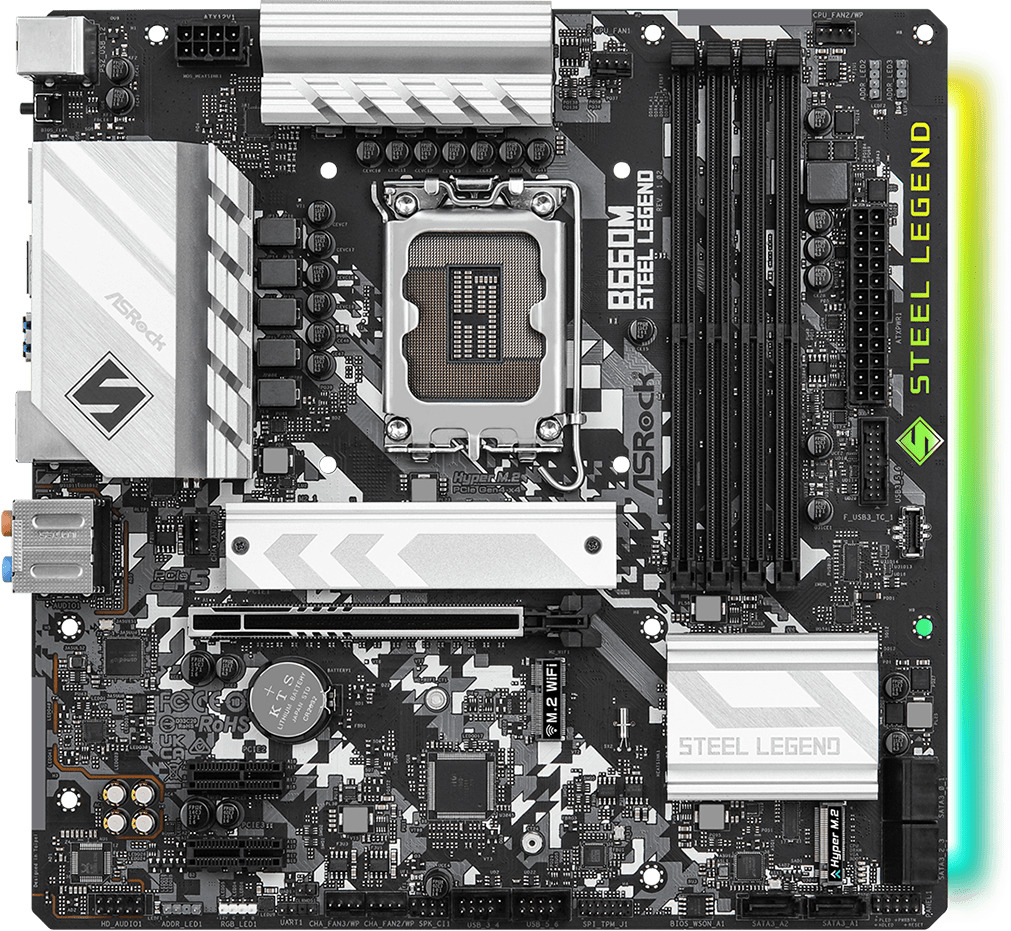

Name: Pagrindinė plokštė ASRock B660M Steel Legend
Brand: ASRock
Price: 206.07 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

ASRock

Modelis

B660M Steel Legend

Lustas (chipset)

Intel® B660

Pagrindinės plokštės matmenys

Ilgis

244 mm

Plotis

244 mm

Plokštės dydis

Micro-ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1700

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR4

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

5333+ МHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Vaizdo plokštės modelis

Intel Xe Graphics

Garso plokštės modelis

Realtek ALC897

Tinklo plokštė

Dragon RTL8125BG

AMD CrossFire

nVidia SLI

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

M.2 lizdų skaičius

Išplėtimo lizdai

PCI Express 1X jungtys

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

D-Sub jungtys

DVI jungtys

HDMI lizdų skaičius

DisplayPort jungtys

PS/2 jungtys

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

6 Layer PCB
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Base Frequency Boost (BFB) Technology
BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users' non K series CPUs and ASRock’s selected 600 series motherboards

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
