Prekės informacija
Bendrosios charakteristikos
Prekės tipas
Prekės ženklas
Modelis

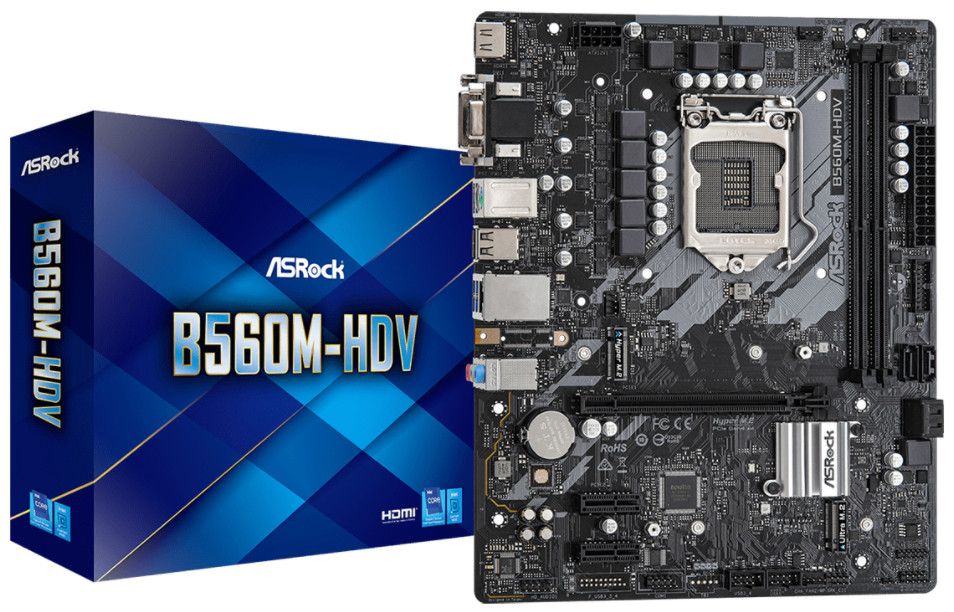

B560M-HDV
Lustas (chipset)
Pagrindinės plokštės matmenys
Ilgis
244 mm
Plotis
198 mm
Plokštės dydis
Procesorius
Procesoriaus tipas
Procesoriaus lizdo tipas
Operatyvioji atmintis
Operatyviosios atminties lizdų kiekis
2
Operatyviosios atminties tipas
Maksimalus operatyviosios atminties kiekis (RAM)
Garsas, vaizdas ir tinklo plokštė
Garso plokštės modelis
Realtek ALC897 Audio Codec
Tinklo plokštė
Gigabit LAN 10/100/1000 Mb/s
AMD CrossFire
Ne
nVidia SLI
Ne
Kietojo disko ir optinių įrenginių pajungimas
SATA 3 jungtys
4
M.2 lizdų skaičius
1
Išplėtimo lizdai
PCI Express 1X jungtys
2
PCI Express 16X jungtys
1
Galimos galinės dalies jungtys
USB 2.0 jungčių skaičius
6
USB 3.x jungčių skaičius
6
Ethernet LAN (RJ-45) lizdas
Taip
D-Sub jungtys
1
DVI jungtys
1
HDMI lizdų skaičius
1
DisplayPort jungtys
0
PS/2 jungtys
1
Papildomai
Garantija
24 mėn
Prekės atspalvis gali skirtis nuo matomo nuotraukoje.
PREMIUM 50A POWER CHOKE
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
