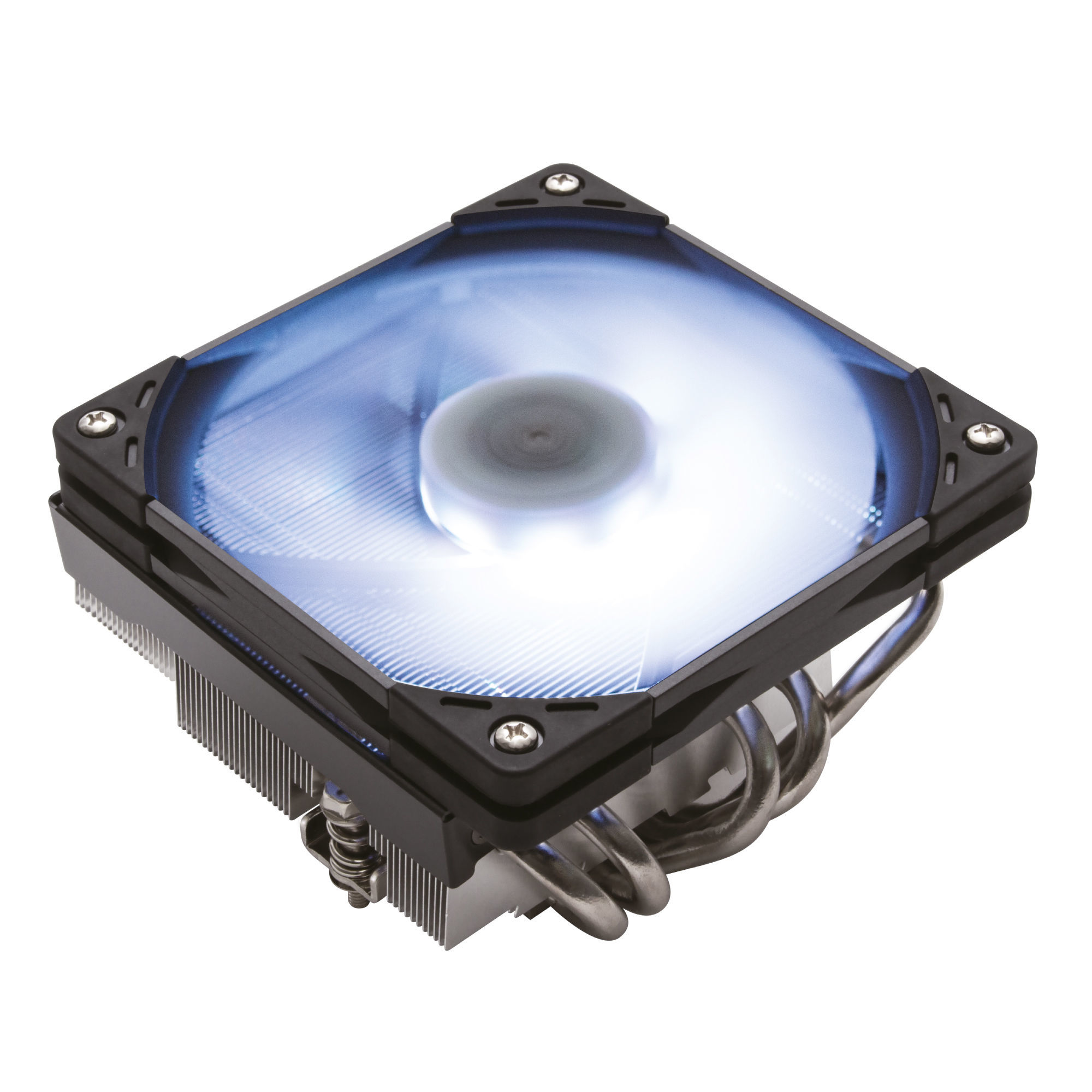

Big Shuriken 3 RGB has been completely re-designed with the goal to significantly improve the compatibility. This has been achieved by shifting the base-plate to the sides in contrast to regular designs with centered base-plates. In order to avoid collisions with the I/O shields of motherboards, the entire cooling fin stack has been revamped. Thanks to this new asymmetrical heatsink design, Big Shuriken 3 RGB is able to deliver unrestricted RAM compatibility and distinguishes itself as the perfect cooling solution for high-end HTPC and ITX systems.
Kaze Flex 120 Slim RGB PWM Fan
In order to keep the Big Shuriken 3 RGB as low as possible, the cooler uses a slim fan from the Kaze Flex 120 series with a height of 17 mm. Despite this low height, the fan is not only equipped with a self-contained fluid dynamic bearing (FDB), but also with RGB LEDs below the fan hub. These LEDs illuminate the translucent fan blades. As usual from the tried and tested Kaze Flex series, this model is also equipped with rubber decouplers. However, they are colored black, to keep the entire frame in tone.
Versatile Fan Mounting
For the cases, where more performance is required and enough headroom for extra height is available, users are able to equip the Big Shuriken 3 RGB with a regular aftermarket 120 mm case fan with 25 mm thickness. The required set of screws is part of the scope of delivery and allows a fast installation process out of the box.
H.P.M.S. III Mounting System
Big Shuriken 3 RGB comes with the secure and user-friendly third generation Hyper Precision Mounting System, which centers around a preassembled mounting bar with spring-loaded screws to guarantee perfect contact pressure. In combination with an updated backplate and rubber / plastic spacers, the system is able to offer a convenient installation process and compatibility to all current sockets including socket AM4 from AMD™ and the socket LGA 2066 from Intel™.
Model name:
Big Shuriken 3 RGB CPU Cooler
Modell number:
SCBSK-3000R
Compatibility:
Intel®:
Sockel T / LGA775
Sockel LGA1150
Sockel LGA1151
Sockel LGA1155
Sockel LGA1156
Sockel LGA1366
Sockel LGA2011(V3)
Sockel LGA2066
AMD®:
Sockel AM2
Sockel AM2+
Sockel AM3
Sockel AM3+
Sockel AM4
Sockel FM1
Sockel FM2
Sockel FM2+

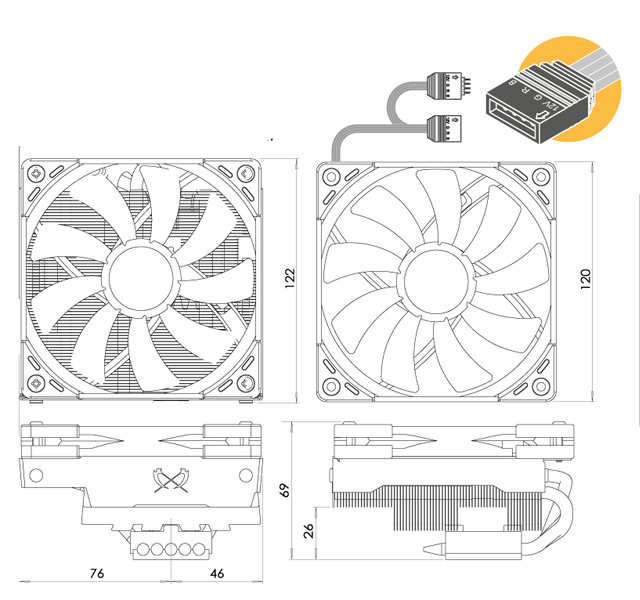

Combined Dimensions:
122 x 122 x 69 mm
Gewicht:
475 g
Accessory:
Mounting parts for Intel™ and AMD™ sockets, thermal grease, installation manual, screws for mounting fans with 25 mm thickness.
Baseplate-Material:
Nickel-plated copper
Fan specifications
Model Name:
Kaze Flex 120 Slim RGB PWM 1800
Model No.:
KF1215FD18R-P
Fan Dimensions:
120 x 120 x 17 mm
Fan Speed:
300 (±200 upm) - 1.800 RPM (±10%) - PWM Controlled
Noise Level:
2,7 – 30 dBA
Air Flow:
8,28 - 50,79 CFM = 14 - 86,29 m³/h
Static Pressure:
0,23 – 1,35 mmH2O / 2,26 - 13,24 Pa
Bearing Typ:
Fluid Dynamic Bearing (FDB)
Input Current:
0.2A / LED 0.12A
Voltage:
12V / LED 12V
