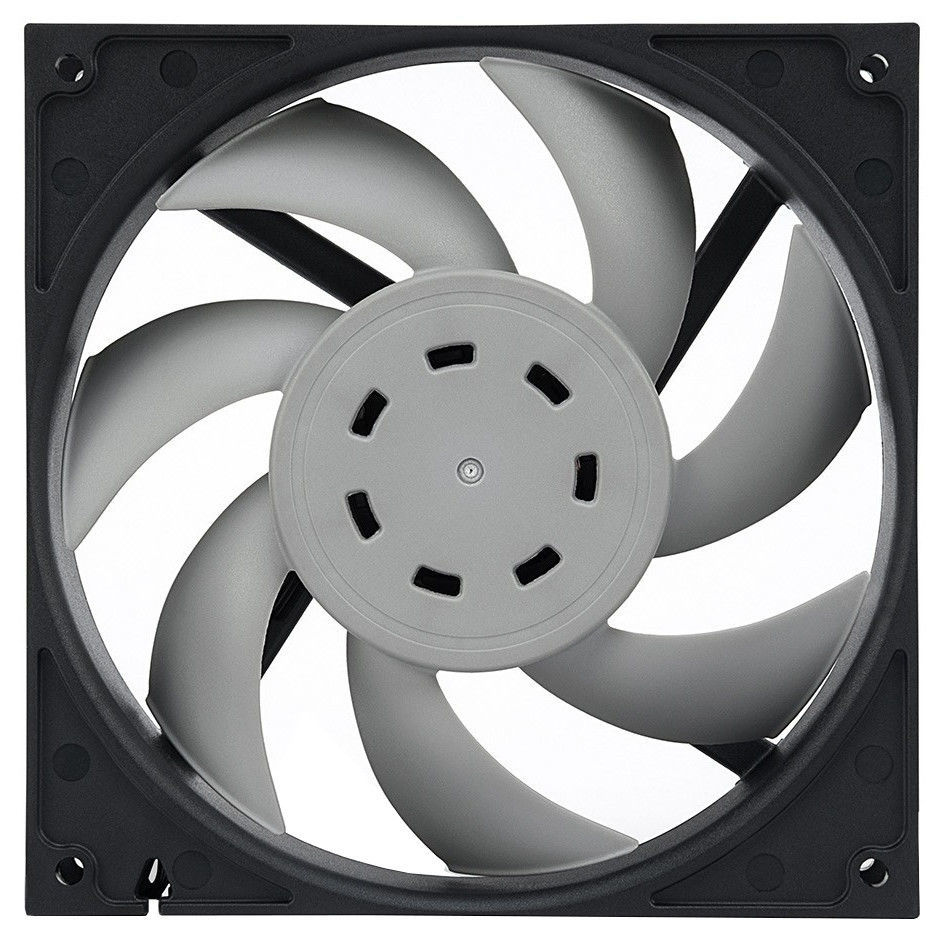

Oro aušintuvas korpusui EK Water Blocks EVO 140S

EK-Vardar EVO is industrial grade high-static pressure computer cooling fan, designed and built primarily for highest-performance computer liquid cooling systems. Developed in-house and first introduced in 2014, renowned EK-Vardar fans have now evolved into new EK-Vardar EVO lineup. EK-Vardar EVO is simply the best choice for computer radiator cooling as it provides unmatched performance throughout the entire operating range.

The Vardar family of cooling fans carries the name of a type of the cold northwesterly wind blowing from the mountains down to the valleys of Macedonia. It is a type of ravine wind, enhanced by a channeling effect while blowing down through the Moravia-Vardar gap, bringing cold conditions from the north to the Thessaloniki area of Greece. Most frequent during winter, it is blowing in the rear of a depression when atmospheric pressure over eastern Europe is higher than over the Aegean Sea.

The key characteristics of EK-Vardar fans are:

High-static pressure / low noise profile - unlike other general-purpose computer cooling fans, the EK-Vardar family of fans is built specifically for computer liquid cooling systems, namely radiator cooling. The 7 fan blade design is optimized for high-pressure operation while maintaining the low noise profile throughout the whole operation range of the fan. Vardar's design and construction are also very suitable for high-performance air coolers or as case fans for restrictive cases with dust filters.

High-quality motor and bearing assembly - New electrical design, actively cooled motor windings and the Dual-Ball bearing with 50.000 hours of lifespan (MTBF) ensures uninterrupted operation for years to come. Precise Pulse Width Modulation (PWM) for fan speed adjustment allows performance on demand.

Sealed-edge fan casing - The classic, yet the effective square shape of the fan casing provides optimal performance in either pull- (suction) or push (pressure) regime without hydraulic losses thus ensuring the optimal cooling capacity of your liquid cooling radiators. The classic shape of the fan frame also allows easy cable routing while grouping more fans on one radiator.

Timeless design - the EK-Vardar EVO fan fits subtly into any liquid cooling computer without drawing too much attention. Delivered in all white color scheme it blends perfectly with a sleek and minimalist looking EK-CoolStream liquid cooling radiator.

Mechanical and electrical specifications:
- Maximum speed: 1150RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 0.88W
- PWM Duty Cycle: 40-100%
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 140 x 140 x 25 mm

Performance characteristics:
- Max Air Flow: 64 CFM = 109 m³/h
- Static Pressure: 1.08mm H2O = 10.5 Pa
- Sleeved cable length: 400 mm
- Noise Level: 26 dBA (100% PWM)

The scope of delivery:
- EK-Vardar EVO BB series fan
- self-tapping screws (4 pcs)

Designed and engineered by EK Water Blocks in Slovenia - Europe
Made in China
