80 Plus Platinum
Certified power supplies enjoy great trust from customers. Their class is proven by professional measurements that determine the ratio of efficiency to load. 80 Plus Platinum certified power supplies have an efficiency of 90% at 20% load, 92% at 50% load and 89% at maximum load. It must be admitted that these are very good results. This power supply will work perfectly with a hardware configuration consisting of high-class components. It is an excellent choice for demanding users.
Fully modular
The power supply with modular cabling will allow you to remove unnecessary cables. Thanks to this, there will be order inside the case and users will avoid tangled cables. This is a perfect solution for people who often upgrade their hardware configuration. Replacing individual components will simply be much easier. We will only use cables that are necessary for the smooth operation of the computer. Of course, the choice depends on the individual needs of users, but it is definitely worth considering purchasing such a power supply.
SCP
The power supply is responsible for supplying energy to the computer's components. Voltage parameters fluctuate in the power grid. SCP (Short Circuit Protection) is short circuit protection. It is activated when the resistance in the circuit is below 0.1 Ω. This protection can be found in all new and older power supplies. As soon as a short circuit is detected, the power supply will be immediately disconnected. Thanks to this, we can rest assured about the components of our computer.
OPP
OPP (Over Power Protection) protects the entire power supply against overload, not limited to individual lines. Exactly the same protection that can be found under a different name is OLP - Over Load Protection. In both cases, the power will be turned off when the power consumed exceeds the total power of the power supply.
OCP
One way to protect our equipment is OCP (Over Current Protection). This is protection against overloading the stabilizer with too high current. Each power line is monitored separately. In case of any overload, the power supply is turned off. OCP is a requirement of the ATX12V standard.
OTP
OTP (Over Temperature Protection) protects the power supply against overheating, which may occur as a result of overload or poor air circulation. The power will be turned off immediately when the temperature reaches the threshold value. OTP protection is required by the ATX12V standard.
UVP
A computer power supply is an extremely important device that is responsible for supplying energy to components. When purchasing, it is worth paying attention to individual security features. UVP (Under Voltage Protection) protects against too low voltage on the input lines. Although this fault does not affect possible damage to components, it may negatively affect their optimal operation. It is definitely worth choosing a power supply with UVP. This will certainly improve the comfort of using your computer.
OVP
OVP (Over Voltage Protection) provides protection against too high output voltage. It is activated when the voltage is 15% higher than the nominal value. The protection operates on each power supply output line and is required by the ATX12V standard. This significantly reduces the risk of failure of powered components.
PFC system active
The PFC circuit allows for power factor correction to minimize losses in transmission lines. Active systems adapt to the conditions in a given network. This directly affects the ability to achieve high performance of the power supply. The power factor range is from 0.9 to 0.99. This is not a parameter that would significantly affect the comfort of using the computer. However, it is a more ecological solution, which may be important for many customers.

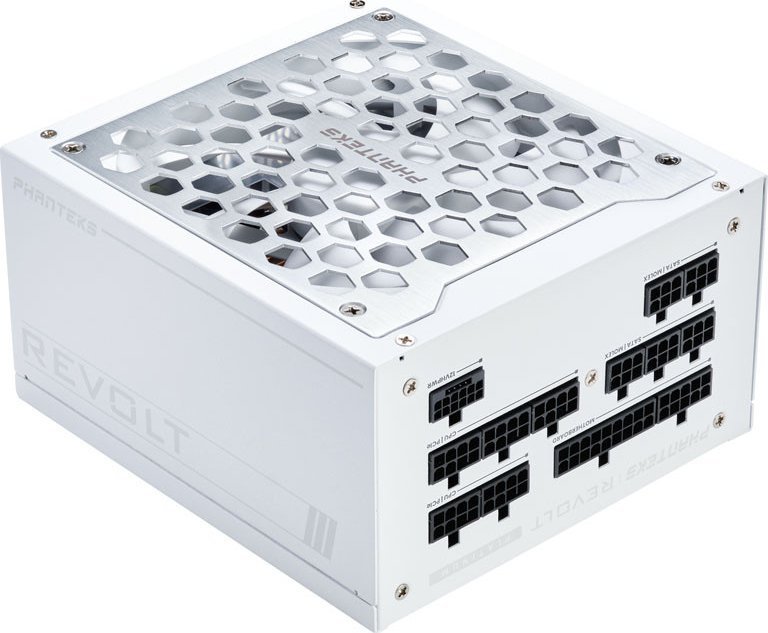

Revolt 1200W Platinum, ATX 3.0, PCIe 5.0, fully modular - 1200 W, white
1200 W power supply, perfect for modern equipment
Fully modular, use only the cables you need
Hybrid fan mode for quiet operation
ATX 3.0 certified, withstanding power surges of 235%.
High performance with an 80 PLUS Platinum rating
No cables included, saving on the generation of e-waste
Phanteks Revolt power supply: a modern power supply that meets modern requirements
The Phanteks Revolt power supply has been developed in cooperation with Seasonic to ensure maximum efficiency and reliability when supplying power to your gaming PC. These power supplies are 80 PLUS Platinum certified, which means they are extremely efficient. The Phanteks Revolt power supply has a hybrid fan control mode, which in this mode and under low load, the fan will turn off, ensuring completely silent operation.
Moreover, this power supply is manufactured to support the latest ATX 3.0 standard, capable of handling power surges of up to 235% of the rated power. Moreover, with native 12VHPWR PCIe GEN5 support, 600W of power can be delivered to the GPU over a single cable. The fully modular design allows you to use only the cables you need for your components, helping you create a clean aesthetic in your build. Plus, by not having cables in your kit, you can choose exactly the cables you need without creating waste.
Extremely efficient and quiet
Phanteks has ensured that Revolt power supplies are highly efficient in providing clean power to your gaming PC. Each power supply has been designed with this in mind and as such has been rated 80 PLUS Platinum. This means that at a load of 50%, the Phanteks Revolt power supply has an efficiency of 94%! This creates minimal waste and does not require much cooling.
Phanteks Revolt power supplies are also equipped with a button to enable hybrid fan control. When turned on, the power supply stops the fan from spinning under light load, meaning it is completely silent. Moreover, the 135mm fan is equipped with dynamic fluid bearings that not only provide excellent durability, but also increase stability, helping to keep it quiet even while working.
No cables
The Phanteks Revolt power supply does not need any cables. This is an innovative idea that is based on fully modular power supplies. Some power supply cables may be surplus to requirements for specific versions. Moreover, people can opt to use a custom cable set instead. This leads to e-waste as people dispose of unwanted cables. By not including any cables, the Phanteks Revolt power supply helps reduce waste.
In addition to these power supplies, Phanteks has released a series of high-quality cables that can be purchased separately. These cable kits are available in two options: a starter kit that includes the necessary cables for your gaming PC and a complete cable kit that includes all the cables you need. Additionally, Phanteks has worked with CableMod to ensure the production of custom cables that perfectly fit Revolt PSUs, and even offer a configurator that allows you to select cables specifically for your case. This allows you to order a custom cable set that will exactly fit your gaming PC.
