Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Maitinimo blokai (PSU)

Prekės ženklas

Fortron

Kolekcija

Hydro PTM Pro

Modelis

PPA12A1001

Ventiliatoriaus dydis

13.5 cm

Apsauga nuo

Per didelės įtampos (OVP), Per žemos įtampos (UVP), Perkaitimo (OTP), Perkrovos (OPP), Pernelyg didelės srovės (OCP), Trumpojo jungimo (SCP)

Galingumas ir energetinis efektyvumas

Galia

1200 W

Energetinis efektyvumas

80 Plus Platinum

PFC tipas (Power Factor Correction)

Aktyvus

Forma

ATX

Jungtys ir sujungimai

Pagrindinės plokštės kištukai

20+4 Pin

PCI-E kištukai

8 x 6 + 2 Pin

Matmenys

Gylis

19 cm

Plotis

15 cm

Aukštis

8.6 cm

Papildomai

Garantija

24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

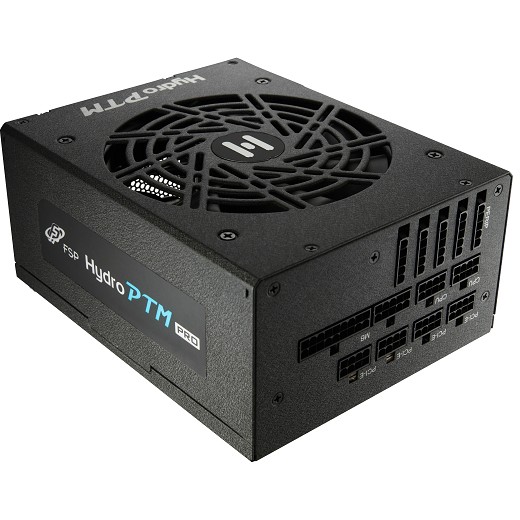

HYDRO PTM PRO
Compared to the previous generation, the Hydro PTM PRO is an IEC62368 certified power supply that has been significantly improved in terms of safety and reduced in size without compromising efficiency. It features proprietary Off-Wet technology, a conformal coating that protects the power supply and its internal components from dust, moisture, dirt and harsh environments. The Hydro PTM PRO series has been tested and has shown excellent performance at up to 95% relative humidity.

Ready to work with the latest Intel processors
Compliance with global safety standards
High efficiency ≧ 92%
Strong construction of a single +12V rail
Quiet and durable cooling
100% Japanese electrolytic capacitors
Complies with the latest ATX 12V V2.52 and EPS 12 v2.92 standards
Design with intelligent fan speed control circuit
Full OCP, OVP, SCP, OPP, OTP, UVP protection
High power certified by 80PLUS® Platinum
Unique product ID with interchangeable side stickers for gamers and DIY enthusiasts

Protection against moisture, dust and dirt
The Hydro PTM PRO series has a conformal coating that protects against dust, dirt and moisture. The conformal coating of the Hydro PTM PRO series provides enhanced and reliable performance in harsh environments and has been tested to function properly at up to 95% relative humidity.

LLC Half Bridge topology and DC-DC modular design
The HYDRO PTM Pro series handles very precise voltage regulation, resulting in +/- 1% output voltage at any load change, and offers high efficiency and voltage stability.

Completely modular design for quick and easy installation
Completely modular design simplifies installation and allows you to use only the necessary cables, which translates into neatness and cleanliness of the set.

Switching to full ECO mode, quieter operation and longer fan life
The Hydro PTM PRO series includes an Eco switch for a quieter operation while using less power. At a load of 30% or less, the power supply goes into a quiet state and the fan is turned off. The HYDRO PTM Pro series is equipped with an FDB fan and an intelligent 0dBA function to reduce noise and extend life.

80 Plus® Platinum certified
The Hydro PTM Pro series is 80 Plus Platinum certified, meaning the power supply generates less heat and has lower running costs. It is guaranteed to operate with a minimum efficiency of 92% at a load of 50% of the rated power of the power supply. The Hydro PTM PRO series fully supports high-performance systems and complies with the latest Intel standards, ATX12V v2.4 and EPS12V v2.92.

IEC 62368 compliant
FSP Group uses the latest green energy technologies and provides additional safety certifications, staying ahead of changes in power supply regulations. FSP has upgraded most of its power supplies to comply with the newer IEC 62368 standards.
