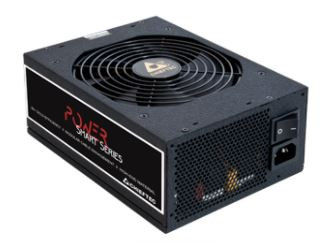

Maitinimo blokas Chieftec Power Smart Series 1250 W, 14 cm

Performance

AC Input: 100-240V / 15A

Frequency: 47 - 63Hz

+5V: 25A

+3,3V: 25A

+5V & +3,3V combined: 150W

+12V 1: 104A / 1248W

+12V 2: -

+12V 1 & +12V 2 combined: N/A

+12V 3: N/A

+12V 4: N/A

+12V 3 & +12V 4 combined: N/A

P.F.: >0,9

-12V: 0,8A

+5VSB: 4,0A

Maximum Load: 1250W

Native cable:

20+4PIN ATX: 1

SATA: -

MOLEX: -

Floppy: -

4PIN 12V: -

8PIN 12V: -

8PIN (4+4) 12V: 2

6PIN PCIe: -

8PIN (6+2) PCIe: -

Modular cable:

20+4PIN ATX: -

SATA: 12

MOLEX: 3

Floppy: 1

4PIN 12V: -

8PIN 12V: -

8PIN (4+4) 12V: -

6PIN PCIe: -

8PIN (6+2) PCIe: 6

Features

Spezification: ATX 12V 2.3

Form factor: PS II

Efficiency: >90%

Dimension (DxWxH): 200 mm x 150 mm x 87 mm

PFC: Active PFC (0,9)

Fan: 140mm silent fan

Security:

UVP (Undervoltage protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

OCP (Overcurrent protection)

OTP (Over Temperature Protection)

AFC (Automatic Fanspeed Control)
