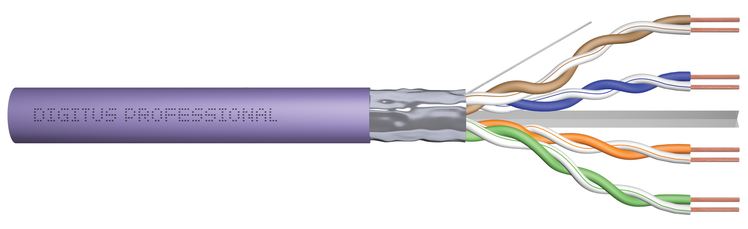

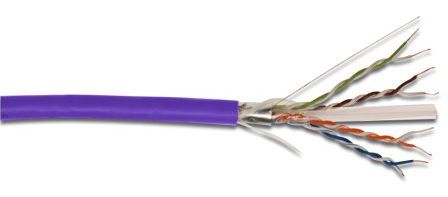

Laidas Digitus, Nėra, 500 m, violetinė

Prekės aprašymas anglų kalba:

Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal

Insulation: HD-PE

Total number of insulated conductors: 8, twisted in 4 pairs

Individual pair shield: None

Overall shielding: Aluminum foil, providing 100% coverage, drain wire

Outer jacket: Halogen-free (FRNC-B/LSZH-1)

Outer jacket diameter: 0.6 mm nominal

Mechanical properties:

Tensile loading: 150N max.

Dynamic bending radius: 8x AD mm min.

Static bending radius: 4x AD mm min.

Shipping- and storage temperature range: -20 °C up to +60 °C

Operating temperature range: -20 °C up to +75 °C

Installation temperature range: 0 °C up to +50 °C

Overall diameter: 7.0 mm nominal

Flame retardancy: IEC 60332-1

Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034

Fire load: 295 Mj/km

Electrical properties:

Mean impedance: 100±5Ohm at 1MHz - 600MHz

Capacitance: 48 pF/m nominal @ 800 Hz

Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz

Insulation resistance: 5 GOhm x km min.

DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)

Voltage resistance: 72 Vdc max.

Coupling attenuation: 40 dB

Signal propagation delay: 535 nS/100 m max.

Propagation delay: 20 nS/100 m max.

NVP: 69%

Shielding: F-UTP, foil shielding

Structure: 4 x 2 AWG 23/1, solid twisted pair
