Komutatorius (Switch) Tenda TEG1009P-EI

Tenda TEG1009P-EI
Prekės aprašymas anglų kalba:

What It Does

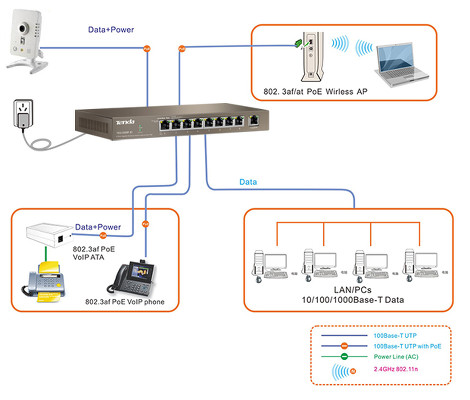

Tenda TEG1009P-EI is 9-Port Gigabit Desktop Switch with 8-Port PoE, providing 9 GE Base-T Ethernet ports. 1-8 ports supports IEEE802.3af PoE(15.4W) or 4 ports 802.3at PoE(30W). Through conventional Cat 5 twisted pair, power can be transmitted along with data for AP, IP Camera and IP Phone. Plus, the device complies with 802.3az(EEE) standard, and is designed with superior performance such as 9th uplink port for lightning protection, PoE dynamic power, lower power consumption and fan-less. Thus, Wireless coverage, safety project, difficult power supply of end-device, maintenance hassle are effectively solved, TEG1009P is ideal for you to lower cost greatly.

Main Features
1、Compliant with IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
2、1-8 ports support PoE（AF/AT）, wire-speed forwarding on each port
3、Backplane broadband up to 18Gbps, packet forwarding rate up to 13.4Mpps, and supports non-blocking wire-speed forwarding
4、Provides 9 10/100/1000Mbps auto-sensing RJ45 ports, support parallel-line and cross-line auto-detection (Auto MDI/MDIX)
5、Integrates with professional lightning-proof curcuit, supports 2-level lightning -proof for uplink port
6、4K MAC address list with adress learning and aging
7、Complies with 802.az(EEE), applies energy-saving chipsets, environment-friendly, fanless design for silent operation
8、Adopts Cat-5e , power and transmission distance up to 150 metres
9、Supports absorption installation and desktop installation, wall-mount

Superior PoE Performance
1-8 ports supports IEEE 802.3af(15.4W) or 1-4 ports IEEE 802.3at (30W). Providing PoE dynamic power, the device can auto-detect power consumption of PD device and match proper output power

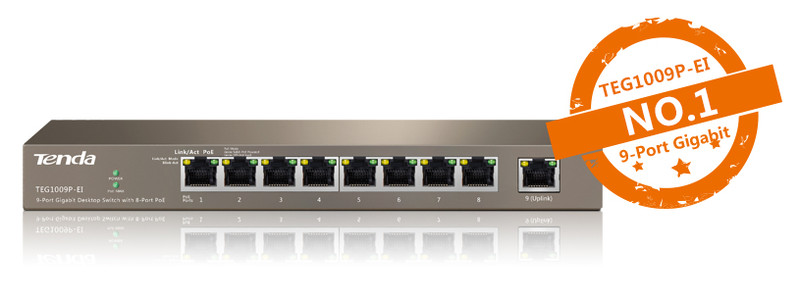

Pioneered 9 GE Ports in Domestic
Providies9 GE Bethernet ports, supports layer 2 wire spee-speed forwarding on each port, and fully meets needs of Gigabit WLAN, HD data monitor


High Reliability
Integrates with professional lightning protection circuit and 2-level lightning-proof for uplink ports(4KV lightning proof for 9th ports). Stronger ethernet technology to improve your network performance


Plug & Play
Plug and play, no any confituration needed. Easy to maintain the device

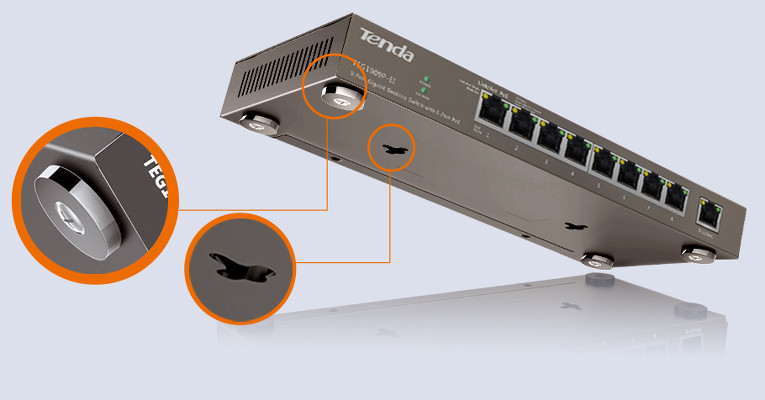

Easy to Install
The device is equipped with magnet and mounting hole, so it's easy to be installed based on metal platform or on smooth wall

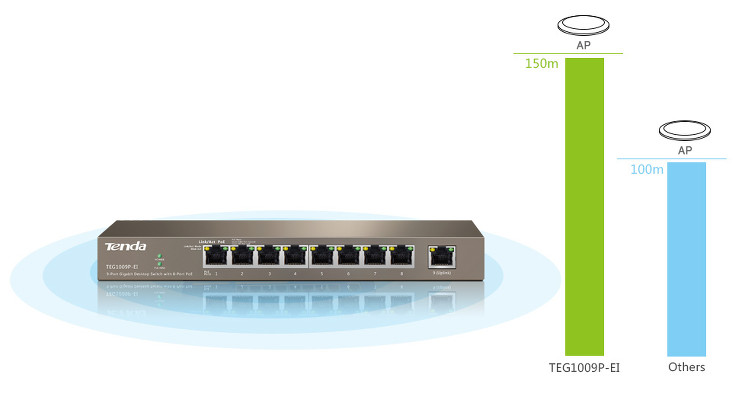

Extend power supply distance
Adopts Cat-5e , power and transmission distance up to 150 metres. The device not only improves the quality of data delivery, but also expands coverage range of small network
