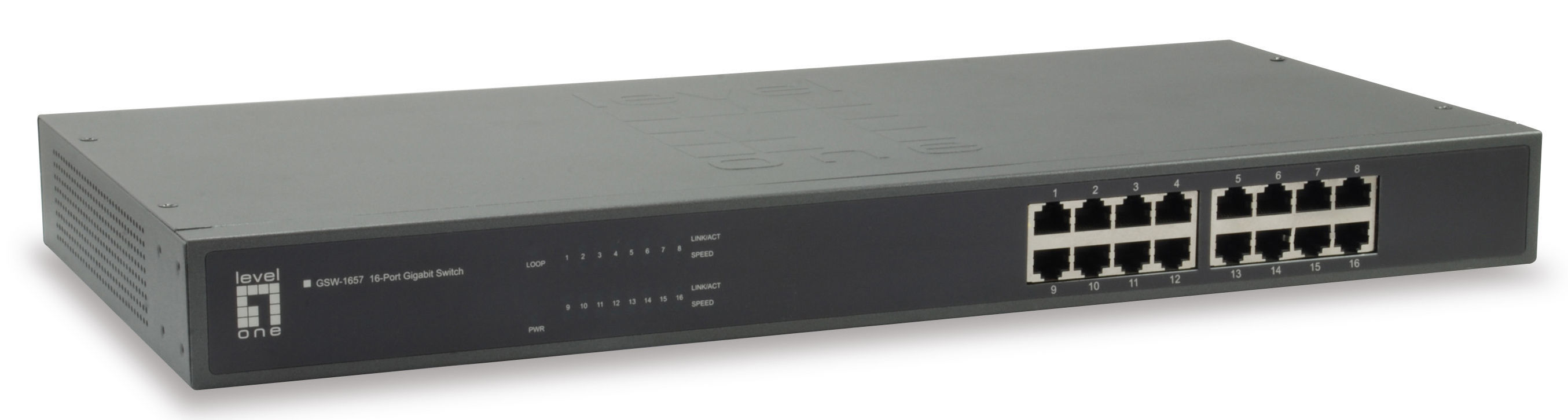

Komutatorius (Switch) LevelOne GSW-1657

Gigabit Speeds: Take Your Data to the Next Level
GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Standards:
IEEE802.3(10BASE-T)
IEEE802.3u(100BASE-T)
IEEE802.3ab(1000BASE-T)
IEEE802.3az Energy Efficient Ethernet

Memory: 64Kbit
Buffer Memory: 2Mbit
Port: Full Shielded

Indicator:
Power
LINK/ACT
1000M
loop detection

Transmission Method: Store- froward
Power Input: AC100-240V
Power Output: 12V/2A
Power Consumption: 15W
Backplane (Gbps): 32Gbps
MAC Address Table: 8K
Power Saving: IEEE802.3az Energy Efficient Ethernet
Operating Temperature (°C): 0-40°C
Operating Humidity (Non-condensing): 10%~90%
General: 16 x 10/100/1000Mbps
Packet Forwarding Rate: 1488000pps
Jumbo Frame (K): 9KB
