Name: Komutatorius (Switch) LevelOne GEP-2681
Brand: LevelOne
Price: 899 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Komutatoriai (Switch)

Prekės ženklas

LevelOne

Modelis

GEP-2681

Šakotuvo tipas

Managed

Gylis

211 mm

Plotis

442 mm

Aukštis

44 mm

Tinklo standartai

IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Tinklo (LAN) jungčių greitis

PoE

Base T jungčių skaičius

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

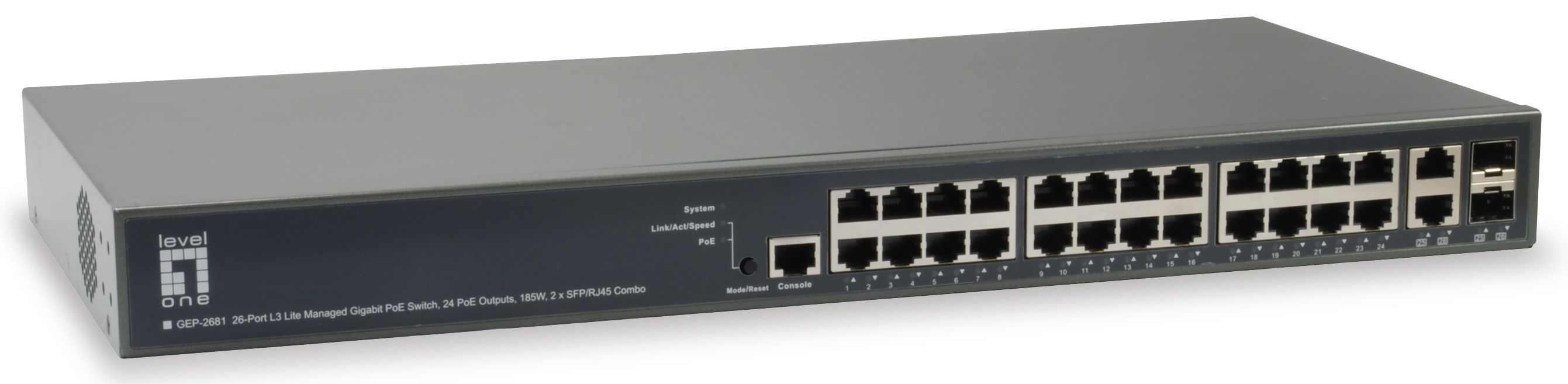

LevelOne TURING 26-Port L3 Lite Managed Gigabit PoE Switch GEP-2681

LevelOne GEP-2681 L3 Lite Managed PoE+ Switch is a next-generation Ethernet Switch offering a full suite of L2 features, better PoE functionality and increased usability. The switch includes advanced L3 features such as Static Route, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

LevelOne GEP-2681 delivers 24 (10M/100M/1000Mbps) RJ45/PoE+ (Supporting 802.3at/af, and a total of up to 185W) ports, 2 Combo GbE RJ45/SFP ports and an RJ45 Console port. LevelOne GEP- 2681 provides high HW performance and environment flexibility for SMBs and Enterprises. LevelOne GEP-2681 is ideal to deliver management simplicity, an intuitive user experience, and lower costs. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install a network of IP Phones, IP Cameras, or Wifi AP for any scale of enterprise applications.

Standards:
IEEE 802.3 10BASE-T, Ethernet
IEEE 802.3u 100BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X,Gigabit Ethernet over fiber optic
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1X Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.1D MAC Bridges
IEEE 802.1d Standard Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet

Protocols: Link Layer Discovery Protocol (LLDP)
Memory:
RAM : 128 MB
Flash : 32 MB

Buffer Memory: 512 KB

Port:
24 x 10/100/1000Mbps RJ45 PoE port
2 x Gigabit RJ45/SFP combe port
1 x RJ45 Console port

Button/Knob: Mode / Reset Button
Indicator: System, Link/Act/Speed, PoE
Transmission Method: Store-and-Forward
Power Input: 100-240 VAC 50~60Hz
Power Consumption: 16.79W (without PoE)
Backplane (Gbps): 52Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps

Power Saving:
IEEE 802.3az Energy Efficient Ethernet:
- Automatically turns power off on RJ-45 port when detecting link down or Idle of client
- Cable length detection: Adjusts the signal strength based on the cable length
- Reduces the power consumption for cables shorter

Heat Dissipation: full loading(PoE on): 807.58 BTU/hr

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: -20°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10 ~ 90%

Mount: 19-inch rack-mountable

General:
Device Management System (DMS)
IGMP: IGMP v1/v2/v3 snooping, IGMP Queried, IGMP Proxy
Virtual Local Area Network (VLAN):
Port-based VLAN
802.1Q tag-based VLAN
MAC-based VLAN
Management VLAN
Private VLAN Edge (PVE)
Q-in-Q (double tag) VLAN
Voice VLAN
GARP VLAN Registration Protocol (GVRP)
DHCP: DHCP Client

PoE:
Power Budget: Max. 185W
Power Output: Up to 30W per port
Protection: Circuit protection to prevent power interference between ports
Management: PoE status, PoE on/off scheduling, PoE power delay, PoE live checking, Per port power
priority setting, PD classification identity
Pin Assignment: 1/2(+), 3/6(-)

Security:
ACLs:L2/L3/L4
ACLs:IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management:
Switch Management:
DHCP: Client, Relay, Option 66, Option 67, Option 82
Event/Error Log: Syslog, SMTP (RFC821)
Management Access Filtering: SNMP, Web, Telnet, SSH
PoE Management: Scheduling, Auto-Checking, Power Delay SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP
MAC Flodding
Native IPv6
IPv6 Dual stack
CLI

L3:
Static Route
DHCP Server

Ease of Use: Firmware and Configuration: Upgrade via HTTP
Packet Forwarding Rate: 38.68 Mpps
Jumbo Frame (K): 9.6k
Switching Capacity: 52Gbps
