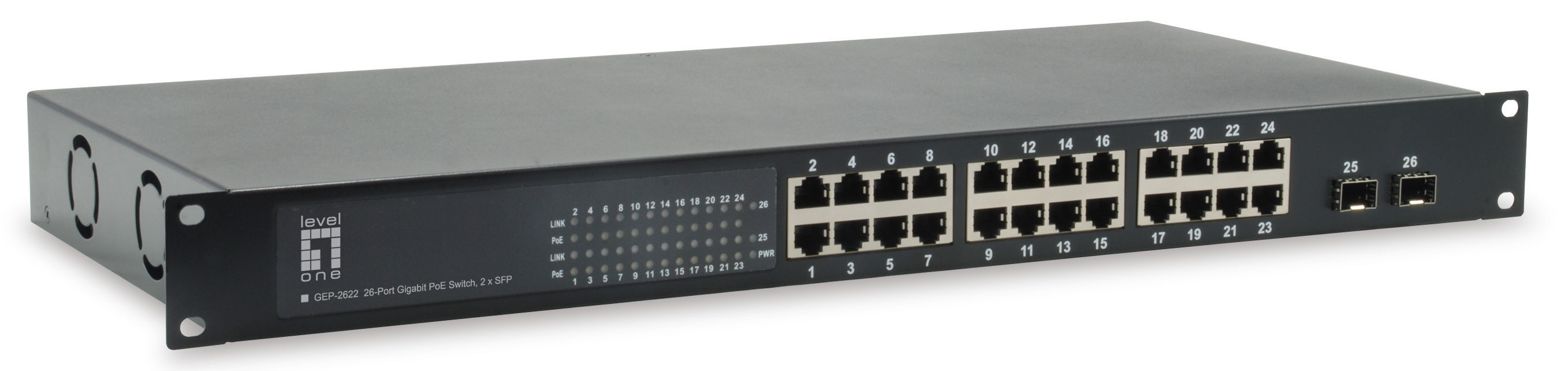

Komutatorius (Switch) LevelOne GEP-2622W250

The LevelOne GEP-2622 series are unmanaged Gigabit PoE switches with 24 RJ45 PoE ports and 2 SFP fiber optic ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per PoE port. The GEP-2622 switches are designed for small-to-medium businesses, offering flexible connectivity and an affordable solution for deploying PoE infrastructure.

Standards:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Memory: MX25L4005AMC-12G
Buffer Memory: 4.1Mbit

Port:
24 x 10/100/1000Mbps RJ-45 PoE Ports
2 x 10/100/1000Mbps SFP Slot

Button/Knob: POWER Button
Indicator: Power, Uplink, LAN 1~24 port, PoE 1~24 port

Transmission Method:
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
1000Base TX Cat. 5e/6/7 UTP/STP

Power Input: AC Power input(100 ~240V), 50/60 Hz
Power Output: Per Port 56VDC, Max. 30 watts (802.3at)

Power Consumption:
GEP-2622W150: 150W
GEP-2622W250: 250W
GEP-2622W380: 380W
GEP-2622W500: 500W
GEP-2622W630: 630W

Backplane (Gbps): 52Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps
Operating Temperature (°C): Storage: -5° ~ 55°C
Operating Humidity (Non-condensing): 10 ~ 90%
Mount: Rackmount
General: 24-port Gigabit Ethernet 802.3at/af PoE Switch with 2-port Fiber SFP
PoE: IEEE 802.3at/af Power over Ethernet/PSE Mode A

Packet Forwarding Rate:
10Mbps 14880pps,
100Mbps 148800pps,
1000Mbps 1488000pps

Jumbo Frame (K): 10K
Switching Capacity: 52Gbps
