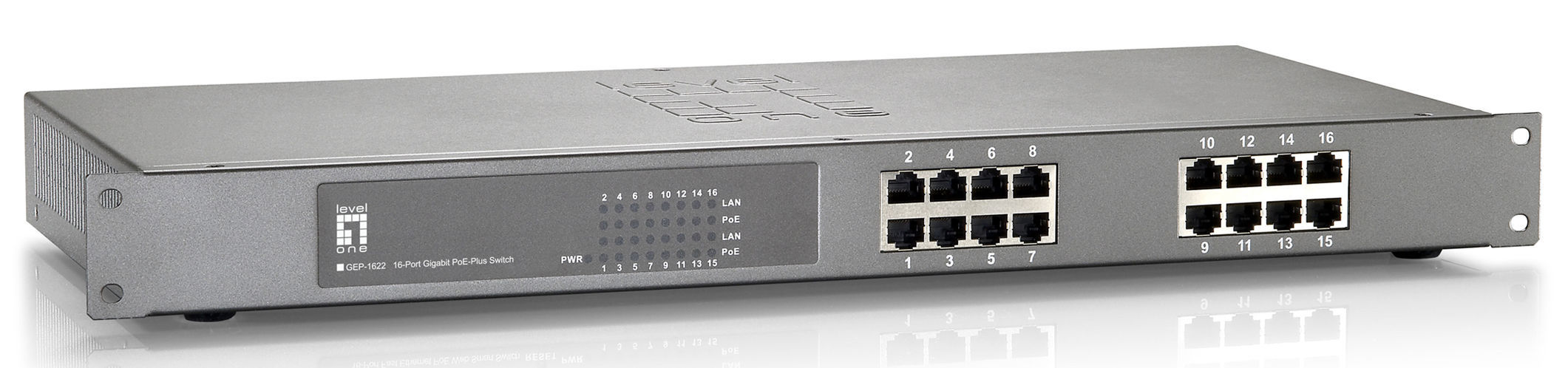

Komutatorius (Switch) LevelOne GEP-1622

The LevelOne GEP-1622 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 480W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1622 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet

Buffer Memory: 256KB
Port: 16 x RJ-45 10/100/1000Base-T PoE-Plus ports
Indicator: Power; Link/Active; PoE
Transmission Method: Store-and-Forward
Power Input: 100-240V AC, 50-60 Hz, Internal Power Supply
Power Consumption: 500W
Backplane (Gbps): 32Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps

Power Saving:
IEEE 802.3az Energy Efficient Ethernet:
- Automatically turns power off on RJ-45 port when detecting link down or Idle of client
- Cable length detection: Adjusts the signal strength based on the cable length
- Reduces the power consumption for cables shorter

Operating Temperature (°C):
Operating: 0°C ~ 50°C
Storage: -40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 5% ~ 90%
Operating: 5% ~ 90%

Mount: 19-inch rack-mountable
Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame

PoE:
Power Budget: Max. 480W
Power Output: Up to 30W per port
Protection: Circuit protection to prevent power interference between ports
Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
1000Mbps port - 1,488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps

Jumbo Frame (K): 9KB
