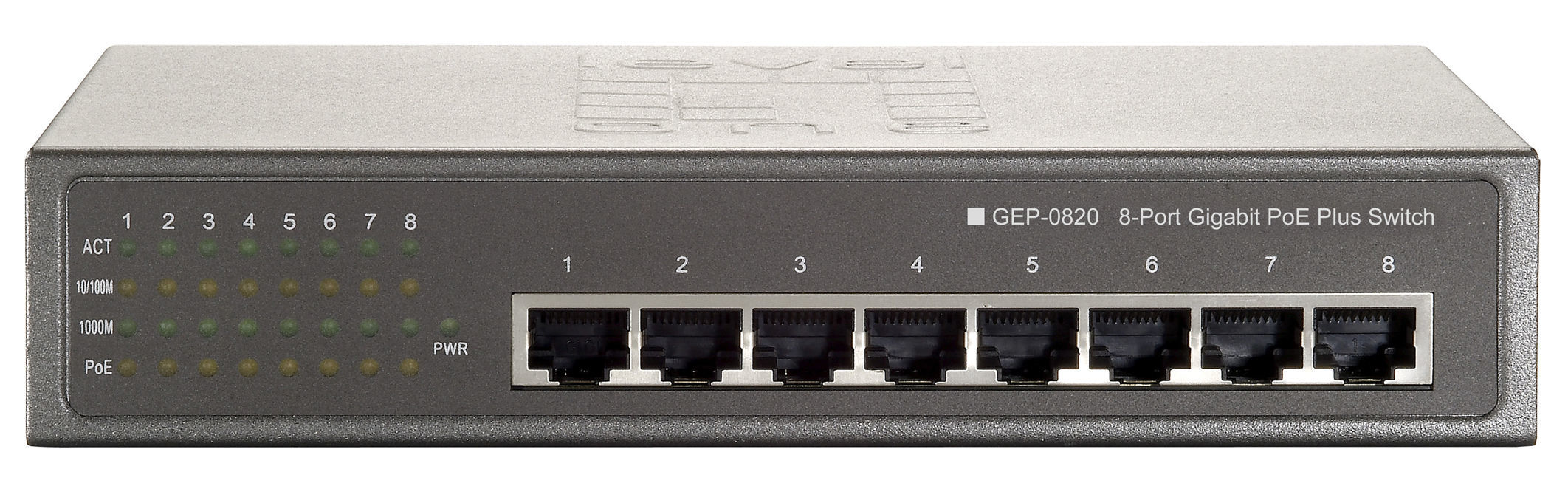

Komutatorius (Switch) LevelOne GEP-0820W65

The LevelOne GEP-0820 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.

Standards
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az: Energy Efficient Ethernet

MAC Address: 8K
Buffer Memory: 128KB
Transmission Method: Store-and-Forward
Backplane: 16Gbps
Jumbo Frame: 9K

Filtering/Forwarding Rates
1000Mbps port-1488,000pps
100Mbps port-148,000pps
10Mbps port-14,880pps

Transmission Media
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
1000Base TX Cat. 5e/6/7 UTP/STP

Network Interface: 8 x 10/100/1000Mbps RJ-45 PoE Ports

LED Indicators: Power, Active, 10/100M, 1000M, PoE
Power Input: 100-240V DC / 50-60Hz 1.35A External Power Adapter

Power Consumption

GEP-0820 (65W)

GEP-0820W90 (90W)

GEP-0820W120 (120W)

Temperature
Operating: 0~45 Degree °C
Storage: -40~70 Degree °C

Humidity
Operating: 10~90% (Non-condensing)
Storage: 10~90% (Non-condensing)
