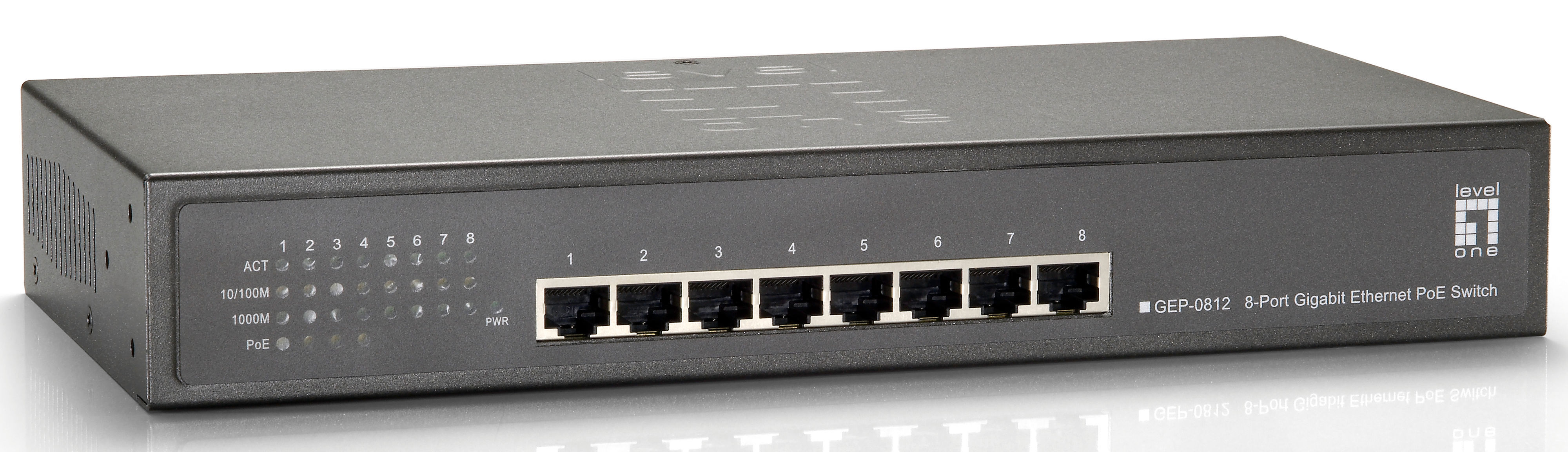

Komutatorius (Switch) LevelOne GEP-0812W120

The LevelOne GEP-0812 series provides 4 x 10/100/1000Mbps and 4 x 10/100/1000Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W / 90W / 120W, up to 30W per port. Ideal for desktops and it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-0812 series is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.


Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)

Buffer Memory: 128KB

Port:
4 x 10/100/1000Base-TX RJ-45 PoE 1~4 Ports
4 x 10/100/1000Base-TX RJ-45 Uplink 5~8 Ports

Indicator: Power, Active, 10/100/1000M, PoE
Transmission Method: Store-and-Forward
Power Input: 100-240V AC, 50-60 Hz, 2A Internal Power Supply

Power Consumption:
< 65W (GEP-0812)
< 90W (GEP-0812W90)
< 120W (GEP-0812W120)

Backplane (Gbps): 16Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

Mount: Desktop and 19-inch rack-mountable
Jumbo Frame (K): 9K

PoE:
Power Budget: Max. 60W (GEP-0812)
Max. 85W (GEP-0812W90)
Max. 115W (GEP-0812W120)
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE
802.3af) or 30 watts (IEEE 802.3at)
Power Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
1000Mbps port - 1488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps
