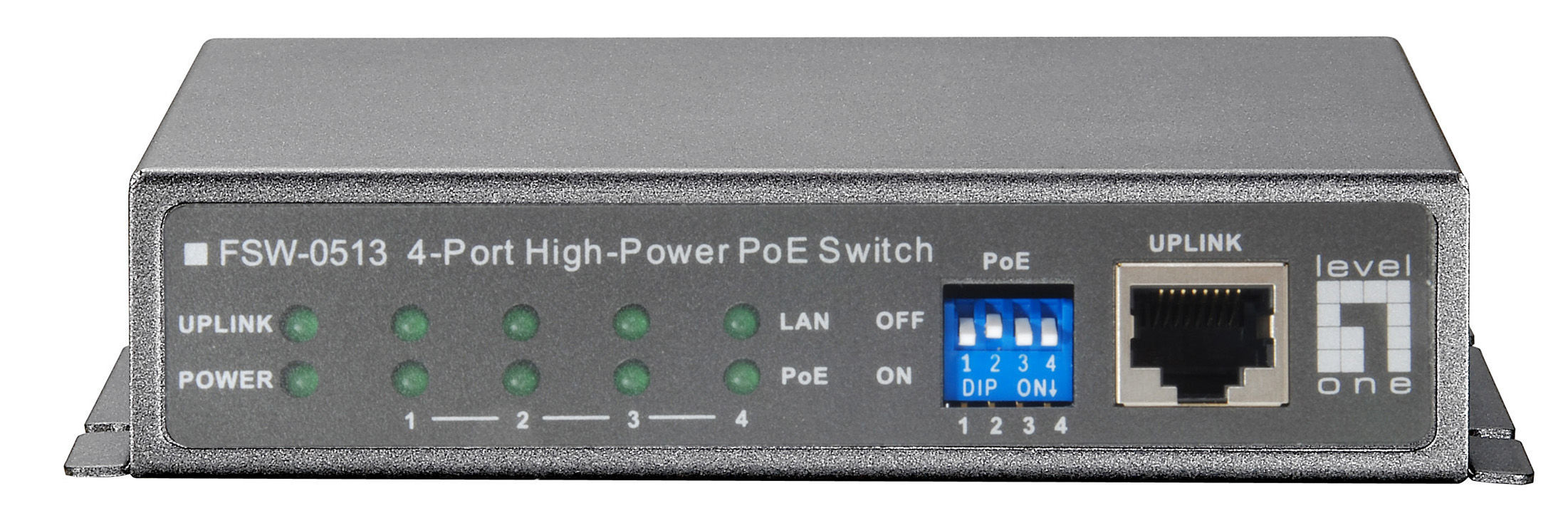

Komutatorius (Switch) LevelOne FSW-0513

Standards
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)

MAC Address: 1K
Buffer Memory: 48KB
Transmission Method: Store and Forward
Backplane: 1Gbps

Filtering/Forwarding Rates
100Mbps port-148,000pps
10Mbps port-14,880pps

Transmission Media
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP

Network Interface
4 x 10/100Mbps RJ-45 PoE Ports
1 x 10/100Mbps RJ-45 Uplink Port

PoE Spec
PoE Compatible: IEEE 802.3af Power over Ethernet / PSE
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 52V DC, Max. 52W (High Power)
Power Budget: Max. 120W
Power Pin Assignment: 4/5(+), 7/8(-)

LED Indicators: Power, Uplink, LAN 1~4 port, PoE 1~4 port
Power Input: 56V / 2.15A
Power Consumption: 120W

Temperature
Operating: 0~45 Degree °C
Storage: -40~70 Degree °C

Humidity
Operating: 10~90% (Non-condensing)
Storage: 10~90% (Non-condensing)
