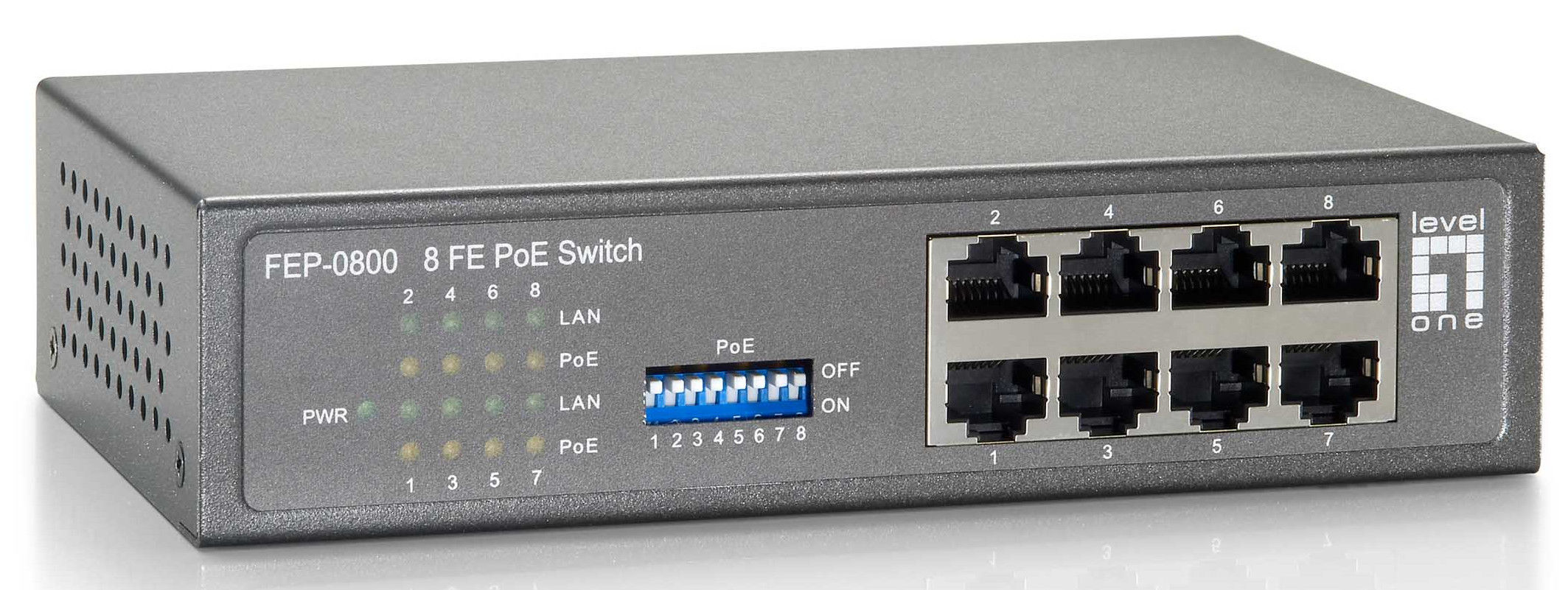

Komutatorius (Switch) LevelOne FEP-0800W65

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control

Buffer Memory: 64KB
Port: 8 x 10/100Base-TX RJ-45 PoE Ports
Button/Knob: PoE Power On/Off Switch
Indicator: Power, Active, 10/100M, PoE
Transmission Method: Store-and-Forward
Power Input: 56VDC

Power Consumption:
< 65W (FEP-0800W65)
< 90W (FEP-0800)
< 120W (FEP-0800W120)

Backplane (Gbps): 1.6Gbps
MAC Address Table: 1K
Data Rate: 10/100Mbps

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

PoE:
Power Budget: Max. 60W (FEP-0800W65)
Max. 85W (FEP-0800)
Max. 115W (FEP-0800W120)
Power Output: 52V DC, up to 30W per port
Protection: PoE over current & PoE circuit sorting protection,
Pin Assignment: 4/5(+), 7/8(-)

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
