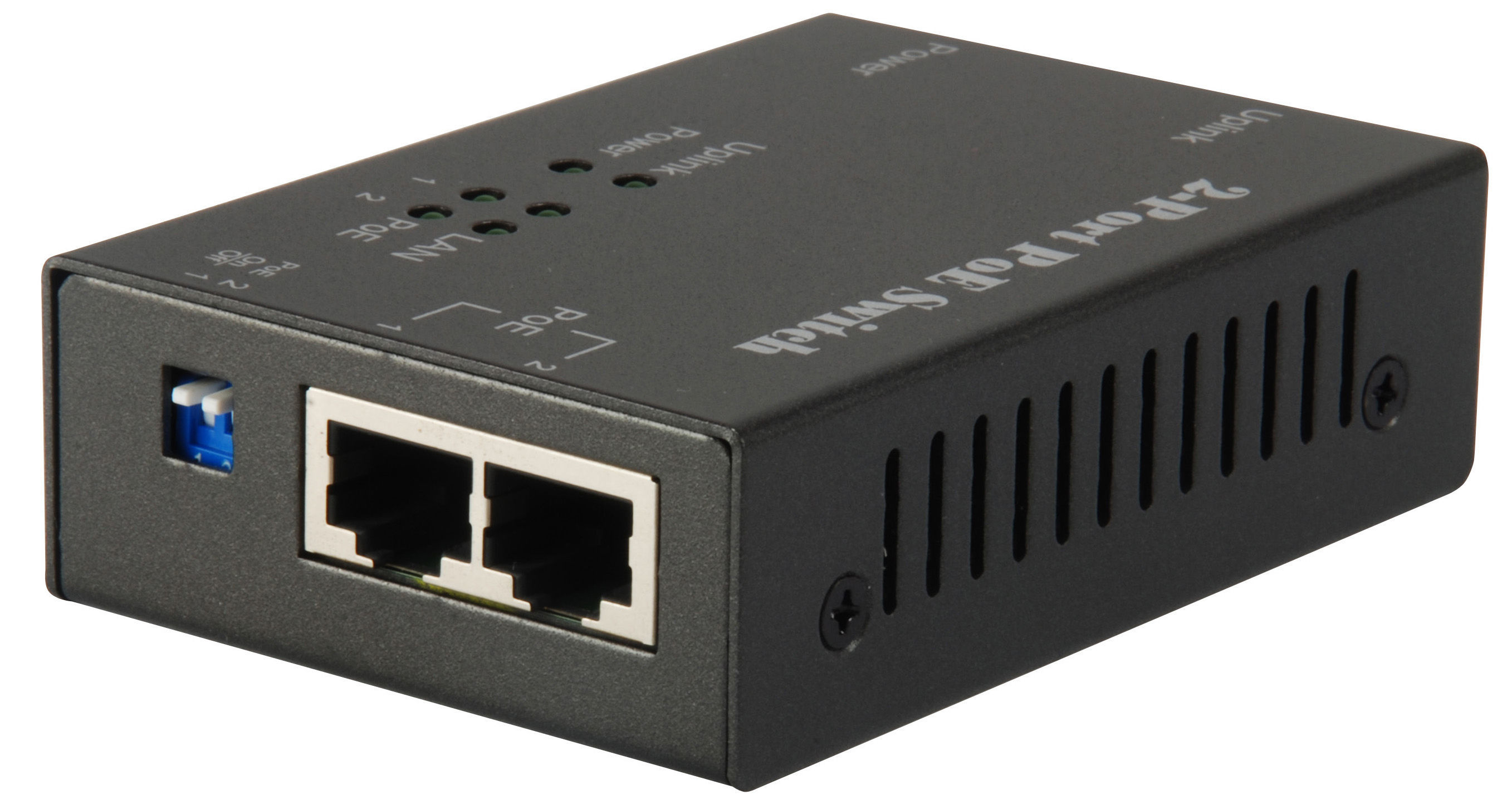

Komutatorius (Switch) LevelOne FEP-0311W65

FEP-0311 is a 3-port 10M/100M Fast Ethernet Switch. One uplink port is connecting with other LAN switch and 2 ports of Power over Ethernet PSE capability. With dip switch, each PoE port can be manually set for On-Off control.

Standards:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Buffer Memory: 384Kbit

Port:
2 x 10/100Base-TX RJ-45 PoE Ports
1 x 10/100Base-TX RJ-45 Port

Indicator: Power, Uplink, LAN 1~2 port, PoE 1~2 port

Transmission Method:
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP

Power Input: AC Power input(100V~240V), 50-60 Hz
Power Output: Per Port 56VDC, Max. 56 watts
Power Consumption: 65W
Backplane (Gbps): 0.6Gbps
MAC Address Table: 4K
Data Rate: 10/100Mbps

Operating Temperature (°C):
Operating Temperature 0° ~ 40°C
Storage Temperature -20 to 70 °C

Operating Humidity (Non-condensing):
Operating: 10 ~ 90%
Storage: 10 ~ 90%

PoE:
IEEE 802.3at/af Power over Ethernet/PSE Mode B

Packet Forwarding Rate:
10Mbps 14880pps,
100Mbps 148800pps

Jumbo Frame (K): 2K
Switching Capacity: 0.6Gbps
