Prekės informacija

Bendrosios charakteristikos

Prekės tipas
Komutatoriai (Switch)

Prekės ženklas
Extra Digital
Modelis
POE1603L
Gylis
270 mm
Plotis
180 mm
Aukštis
44 mm
Svoris
2100 g
Spalva
Juoda
Korpuso medžiaga
Metalas
Tinklo standartai
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE802.3u
Tinklo (LAN) jungčių greitis
10/100/1000 Mbps
Base T jungčių skaičius
16
Įtampa
100 - 240 V
Garantija
24 mėn

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

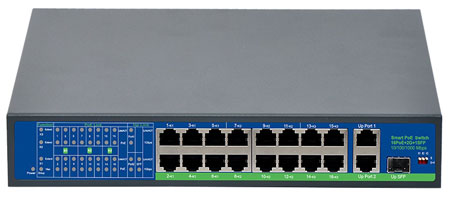

Features:

• 16*10/100mbps POE port;2*10/100/1000mbps UP Link

• 250m Distance;Vlan support

• Support IEEE802.3AF/AT

• Whole Power:250W(52V 4.8A)

• All port supported by MDI/MDIX auto flip and self negotiation

• Supply 18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.

• Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

• Each port max. power supply reached 30W.

Technical Specifications:

• PoE Port 1 to 16 port support IEEE802.3af/at

• UP link port 17th-18th port support 1000Mbps

• PoE output15.4W/30W IEEE802.3af/at

• PoE whole power =250W

• PoE type End-span

• Power distance =250m

• Network Standard IEEE 802.3? IEEE802.3u?802.3x?802.3af/at

• Network Medium10/100BASE-TX:5 class and above non shielded twisted pair

• Data Distance=250m

• Switch capability 12Gbps

• Forwarding Mode Store and forward

• Forwarding Rate 100Mbps:14880pps 1000Mbps:14800pps 1000BASE-T: 1488095pps/port

• MAC Address 2K MAC address table

• Port function Power priority mechanism, fast and forward, MAC automatic learning and aging

• IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

• Indicator LINK/ACT. 100Mbps;POE Status indicator; POWER indicator;EXTENDER indicator

• Working Environment Working Temperature: -10°-- 55°C

• Input power AC100-240V 50/60HZ

• Weight 2.1kg

• Size 270mm*180mm*44mm(L*W*H)
