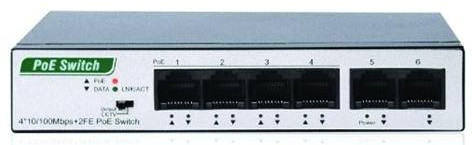

The PoE switch with 4 PoE ports of 10/100Mbps and 2 RJ45 ports of 100Mbps each; 1-4 ports support the IEEE802.3af / at standard with intelligent recognition.
The standard power of PoE port is 15.4W / port, maximum power: 30W / port using only one port.
With the help of the switch, ports 1-4 support the watchdog and automatic device reload function (in case of loss of connection to the device) without user intervention (self-healing), VLAN and data provision at a distance of 250m and isolation mode.
The total PoE output power is 65W. The PoE power supply can automatically detect and recognize a standard-compliant device and supply power via a network cable to devices such as a wireless access point, webcam, IP telephony (VoIP), a building intercom operating via a network cable, and more. Suitable for hotels, dormitories and small and medium enterprises.
Specifications:
Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
Ports: 4x10/100Mbps Base-TX PoE ports (data/power); 2x10/100Mbps Base-T Uplink RJ45 ports (data).
Features: watchdog, self-healing, Vlan & 250 m, isolation mode.
MAC address table: 1000.
Buffer memory: 768K.
Total power: 65W.
Power adapter: (built-in) AC (50-60Hz) 100V~240V 65W.
Power consumption: standby: <4W; full load: <60W.
PoE power per port: max. 30W (using only 1 port) / average 15.4W.
Operating temperature: -20°C ~ + 55°C.
Operating humidity: 5-90% RH.
Protection grade: IP30.
Size: 195x130x40 mm.
Weight: 0.8 kg.
Certification: CCC; CE; CE / LVD EN60950; FCC Part 15, Class B; RoHS.
